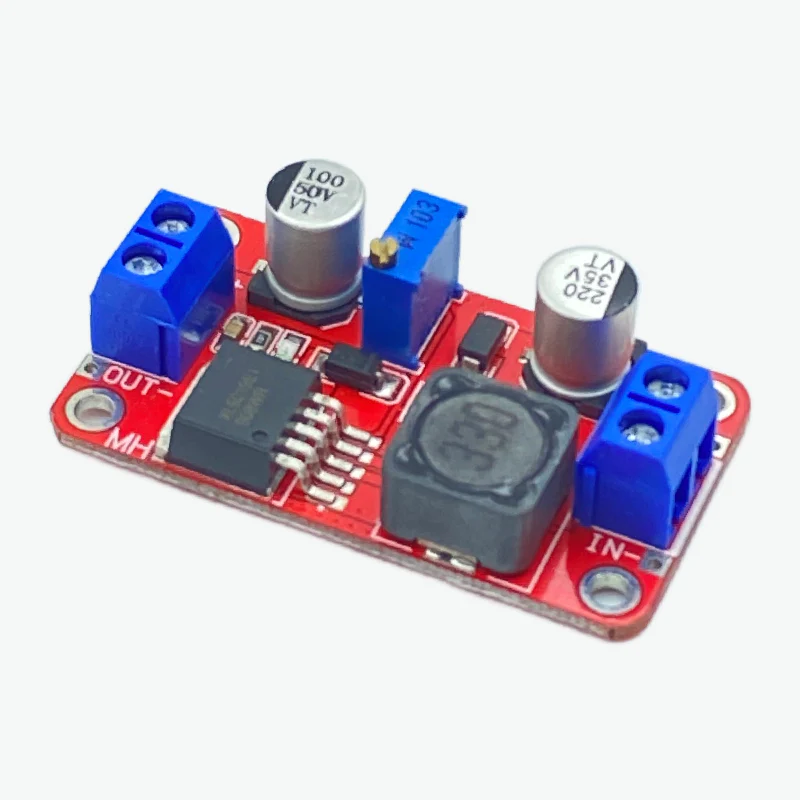

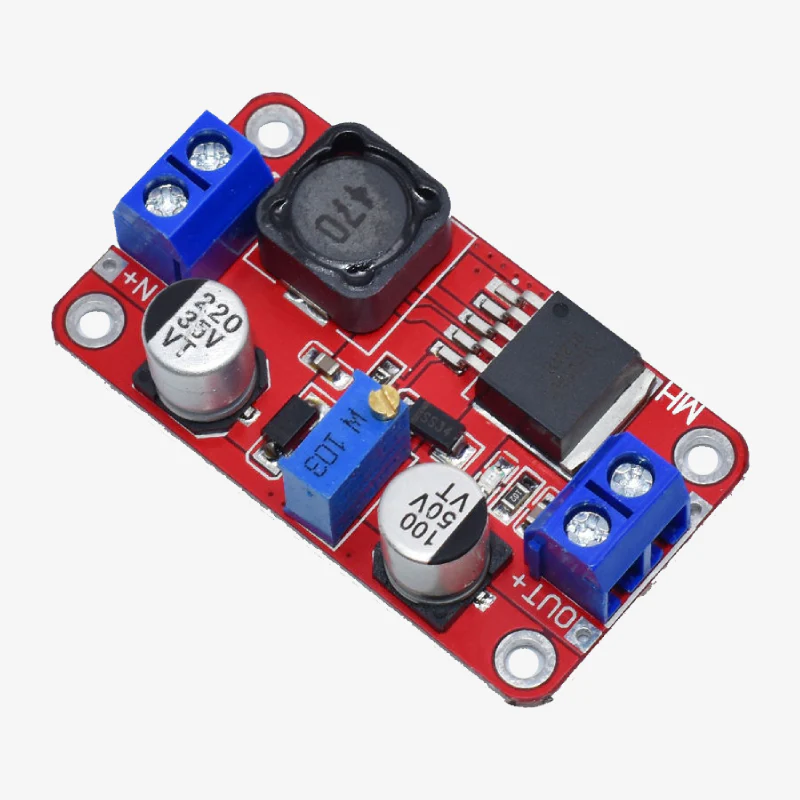

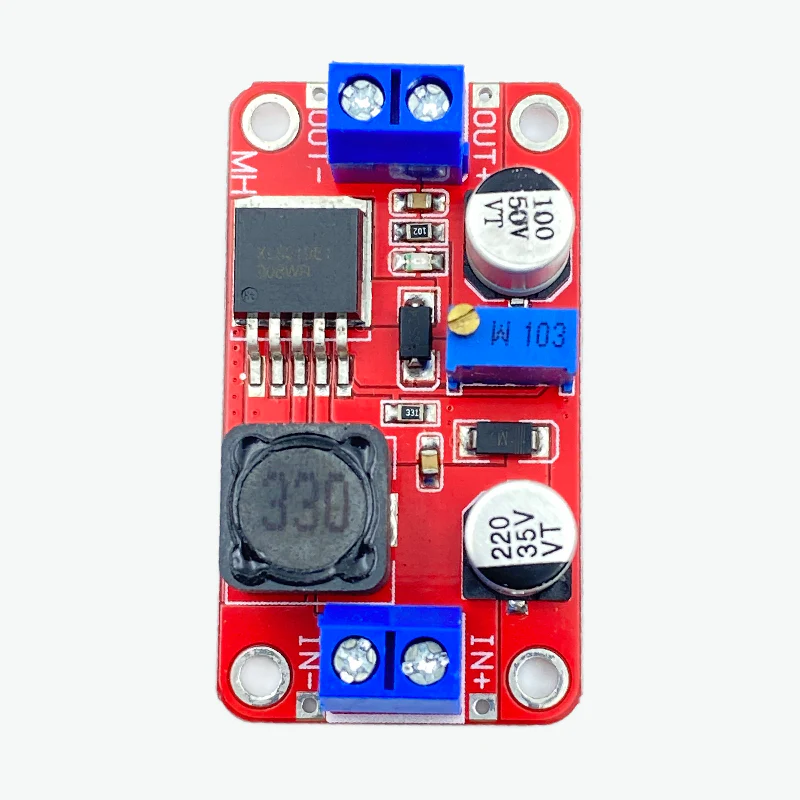

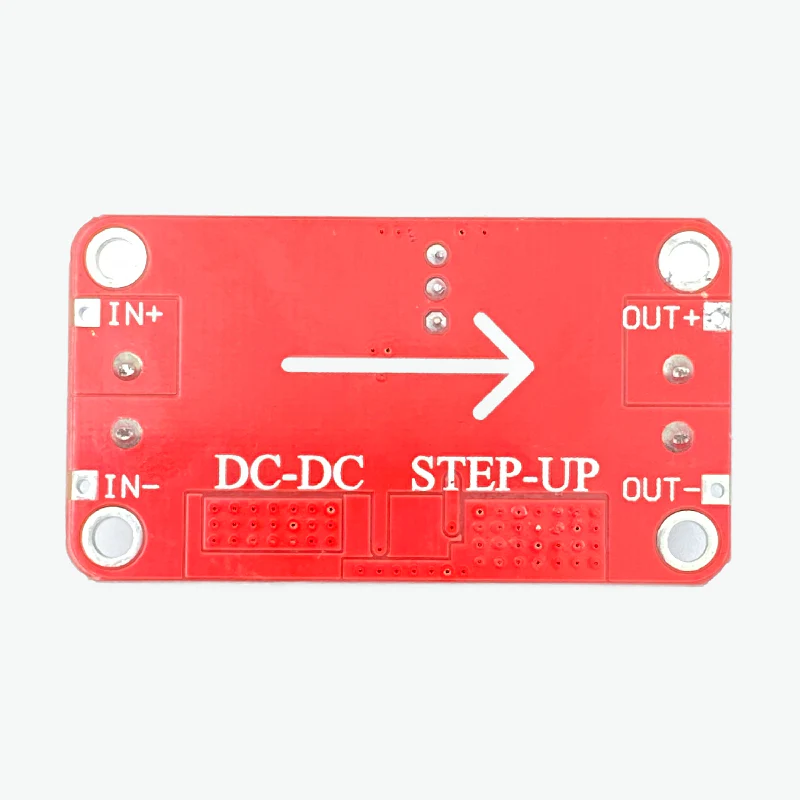

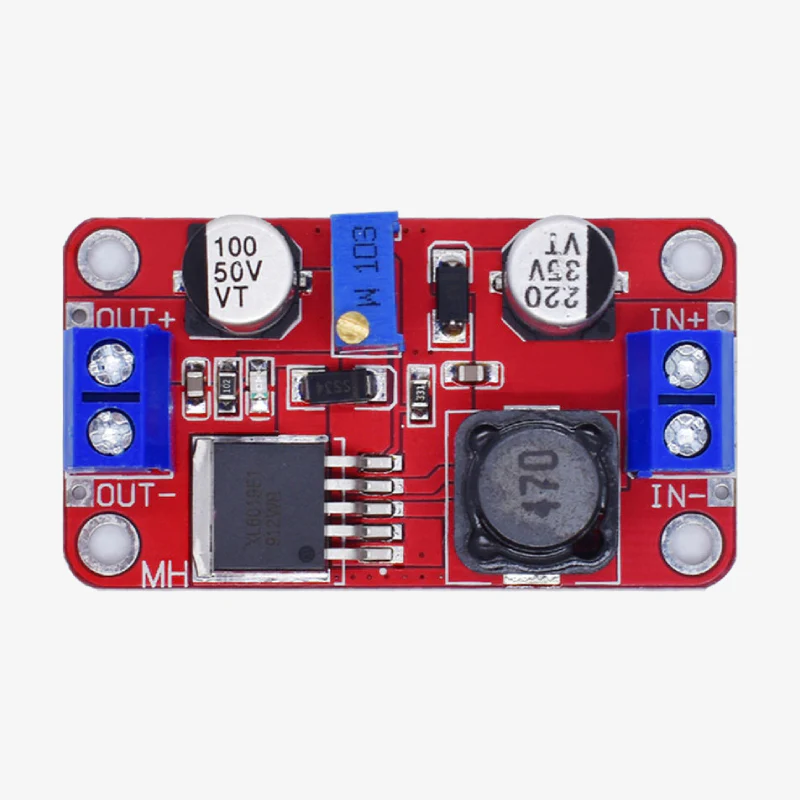

The XL6019 Adjustable Boost Power Supply Module is a high-efficiency DC-DC step-up converter capable of delivering up to 5A output current. Using the XL6019 high-power boost IC, this module can raise lower DC voltages to higher, stable output levels with excellent efficiency and low ripple. It is ideal for LED drivers, battery-powered systems, vehicle electronics, DIY power projects, and circuits requiring a reliable adjustable boost converter.

Features:

1. High-efficiency XL6019 boost converter IC
2. Adjustable step-up output voltage
3. Supports up to 5A output current
4. Wide input voltage range suitable for various DC sources
5. Large inductor and heat-sink design for stable high-current operation
6. Low ripple and fast response
7. Ideal for powering LEDs, battery packs, DIY electronics, and boost supply applications

Specifications:

• Module Type: DC-DC Boost (Step-Up) Converter
• Chipset: XL6019
• Input Voltage: 5V – 32V
• Output Voltage: Adjustable 5V – 55V
• Output Current: Up to 5A (peak), ~3A stable continuous
• Efficiency: Up to 94% (varies with load/input/output)
• Switching Frequency: ~400 kHz
• Output Ripple: Low (load-dependent)
• Protection Features:

• • Overcurrent protection

  • Thermal protection

• Adjustment: Multi-turn potentiometer for output voltage tuning
• Operating Temperature: –20°C to +85°C
• Applications: LED drivers, battery boost systems, vehicle power, DIY power supply, embedded circuits

Package Includes:

1 × XL6019 DC-DC 5A Adjustable Boost Power Supply Module
