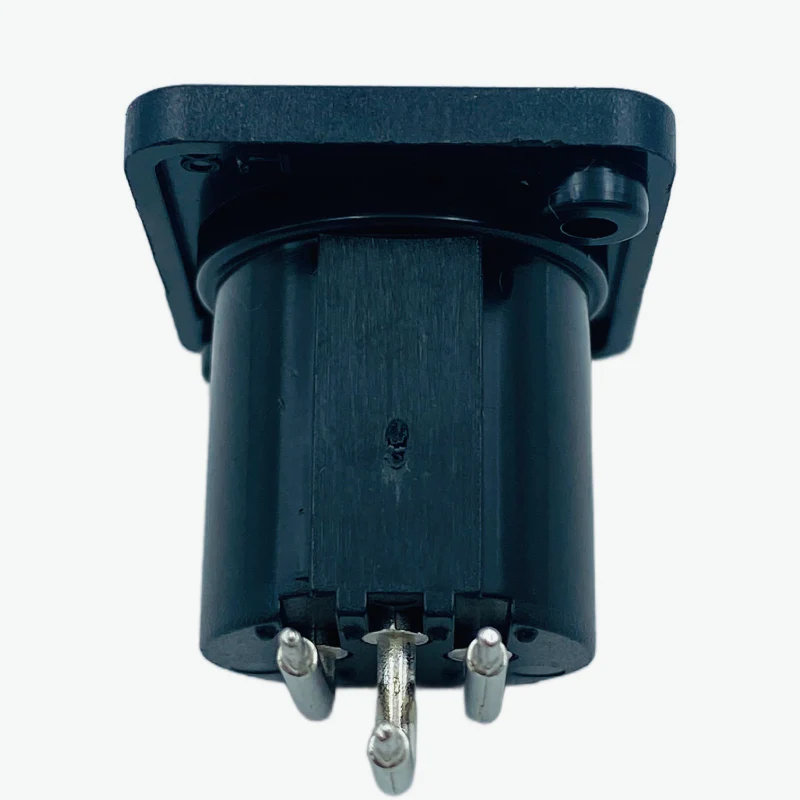

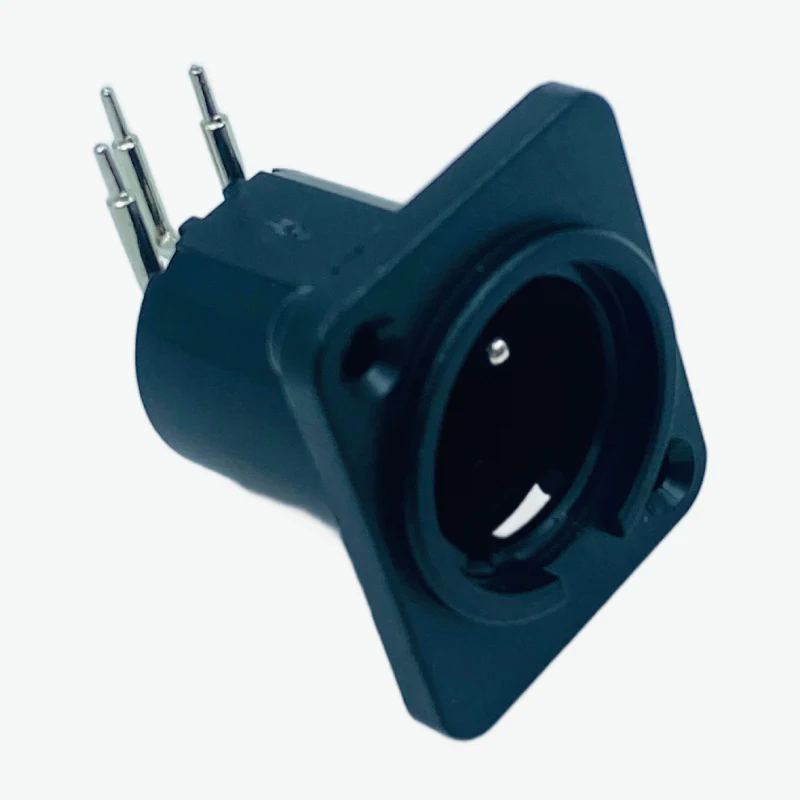

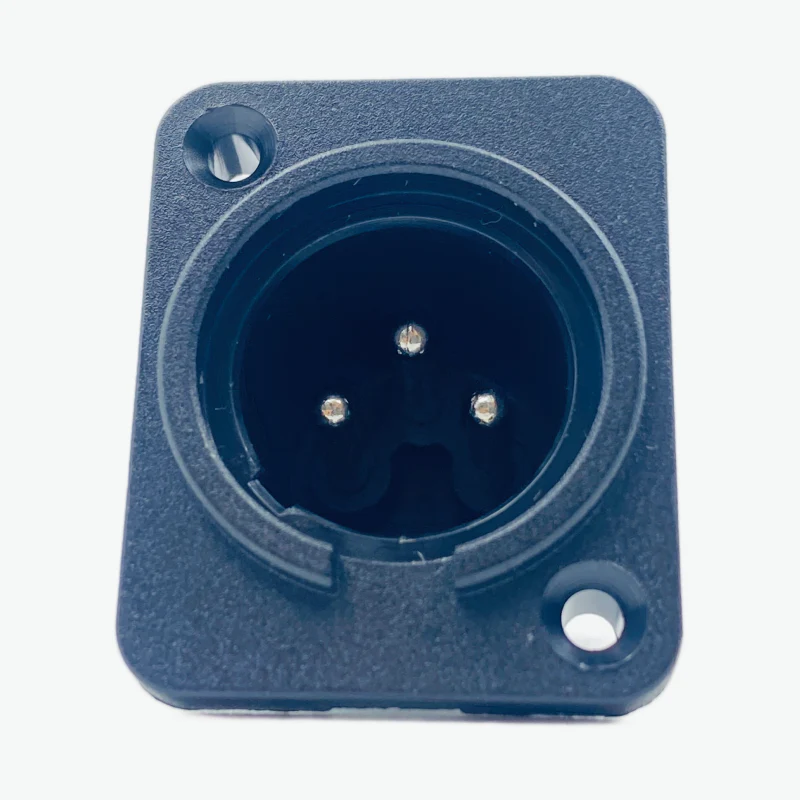

XLR Male Socket with Right Angle is a professional-grade 3-pin right angle XLR male socket designed for secure and reliable audio signal connections in microphone, AV, and professional sound systems. Built with a durable zinc alloy metal body and high-quality plastic insulation, it ensures excellent shielding, low noise interference, and long-lasting performance. The right-angle design allows efficient cable management in compact setups, making it ideal for stage, studio, and broadcast applications.

Features:

1. 3-Pin Right Angle XLR Male Design
2. Durable Zinc Alloy Metal Construction
3. Full Metal Shielded Body for Noise Reduction
4. Latch Lock Mechanism for Secure Connection
5. Low Contact Resistance for Clear Signal Transmission
6. Supports Balanced Audio Signals
7. High Durability with Over 1000 Mating Cycles
8. Compact Design for Space-Constrained Installations
9. Suitable for Panel or Cable Mount Applications

Specifications:

• Connector Type: XLR Male Socket
• Pin Configuration: 3 Pin Right Angle
• Rated Voltage: 125V AC
• Current Rating: Up to 5A
• Material: Metal (Zinc Alloy) & Plastic
• Contact Material: Brass with Nickel Plating
• Shielding: Full Metal Shielded
• Insulation Material: PVC
• Wire Gauge: 24 AWG
• Outer Diameter: Approx. 7mm
• Operating Temperature: -20°C to +60°C
• Insulation Resistance: 1000MΩ @ 500V DC
• Contact Resistance: < 5mΩ
• Mounting Type: Panel Mount / Cable Mount
• Color: Black/Silver
• RoHS Compliance: Yes

Applications:

• Professional Audio Systems
• Microphone Connections
• Studio Recording Equipment
• Live Sound and Stage Setup
• Broadcast and AV Equipment
• DIY Audio Projects
• Mixers and Amplifiers
• Signal Transmission Systems

Package Includes:

1 x XLR Male Socket Right Angle
