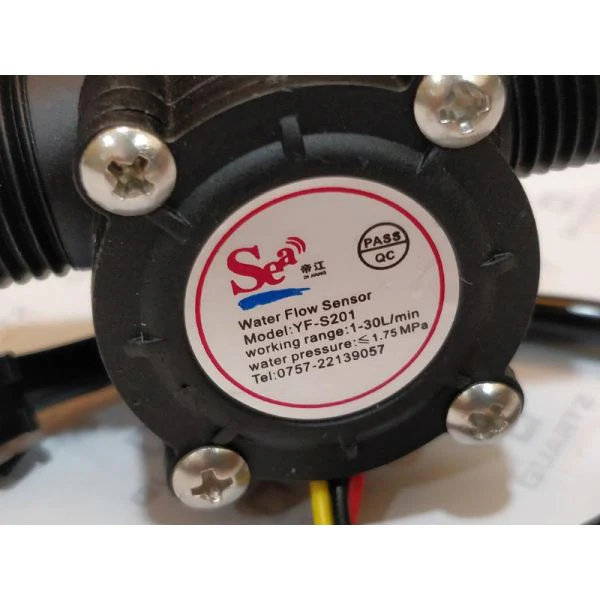

The YF-S201 sensor is widely used water flow measurement sensor used in different applications such as a robotic cocktail dispensing machine, accurately measure components like Soda, Water, etc. This has only three pins and comes in a compact size to fit in the application area without any big effort.



YF-S201 Water Flow Sensor Specifications:

• Sensor Type: Hall effect
• Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
• Max current draw: 15mA @ 5V
• Output Type: 5V TTL
• Working Flow Rate: 1 to 30 Liters/Minute
• Working Temperature range: -25 to +80℃
• Working Humidity Range: 35%-80% RH
• Accuracy: ±10%
• Pulses per Liter: 450
• Output duty cycle: 50% +-10%
• Output rise time: 0.04us
• Output fall time: 0.18us
• Maximum water pressure: 2.0 MPa
• Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)



Package Includes:

1 x YF-S201 Water Flow Measurement Sensor
