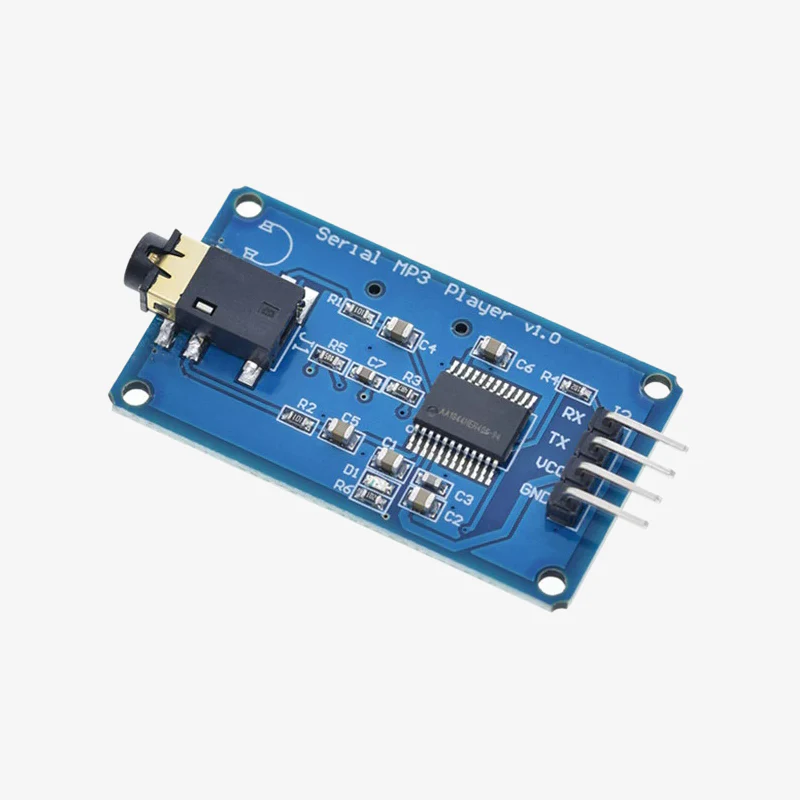

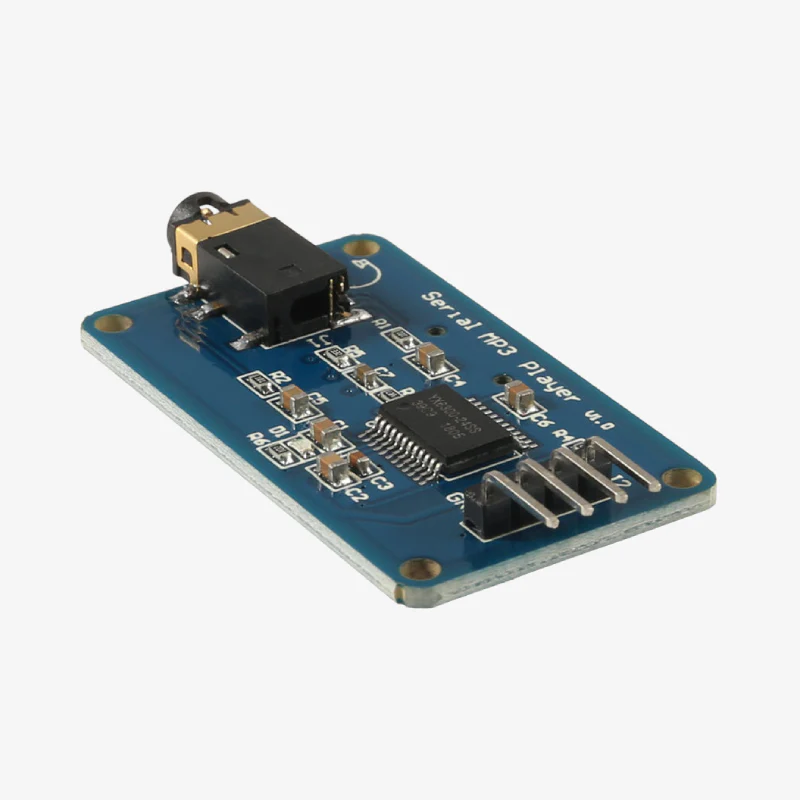

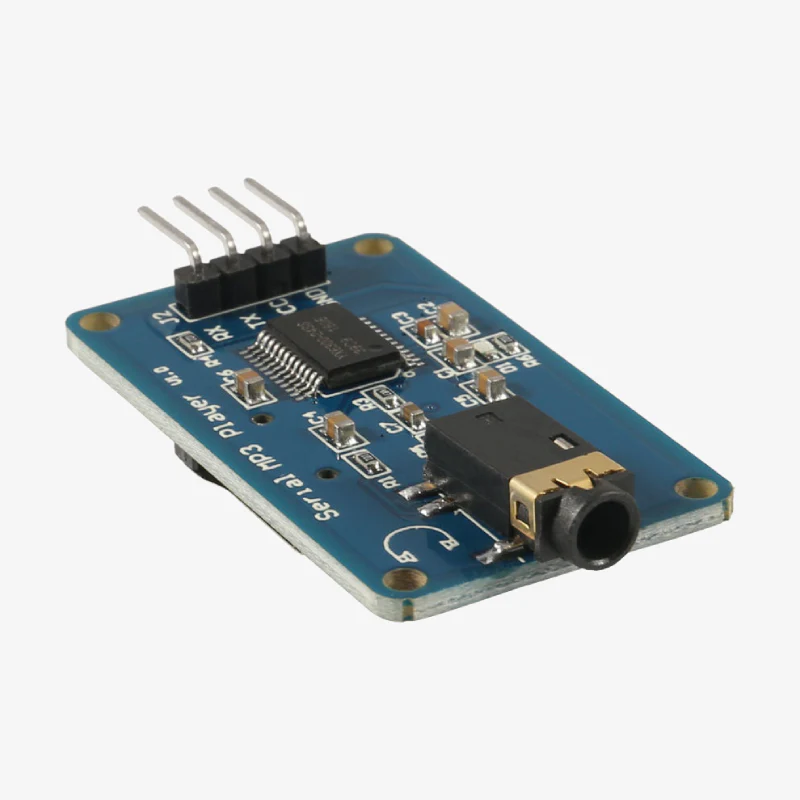

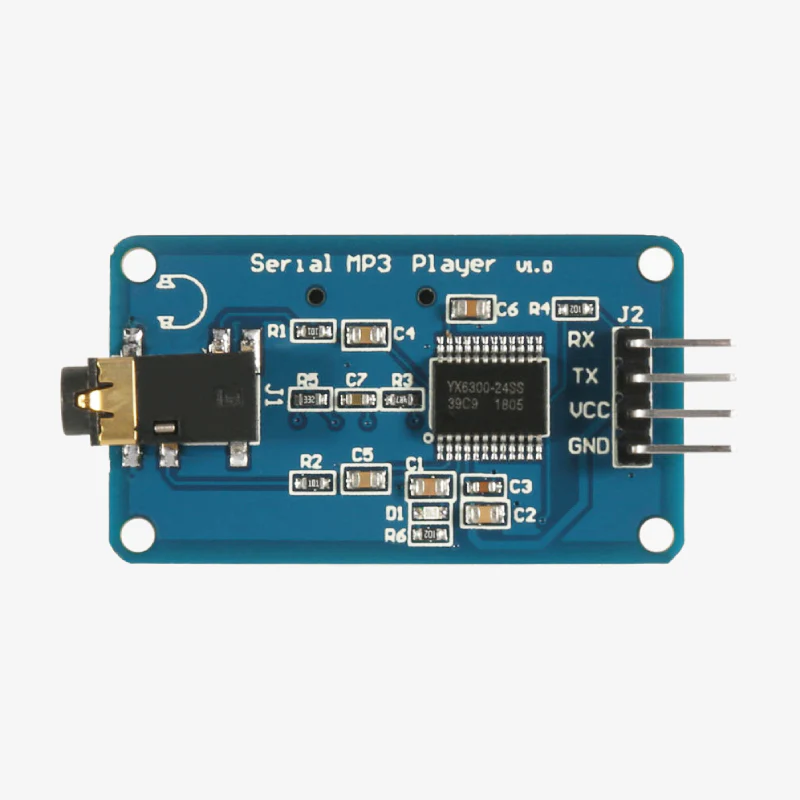

The YX5300 MP3 Player Module is a compact and efficient voice and music playback module designed for embedded audio applications. It supports serial communication, allowing microcontrollers such as Arduino, STM32, and Raspberry Pi to control playback easily. Equipped with a TF card slot, it can store and play MP3 files directly from the card. The onboard YX5300 chip handles MP3 decoding and audio output, making it an ideal solution for projects requiring audio feedback or playback functions.

Features of YX5300 MP3 Player Module:

1. Supports MP3 audio format for playback
2. Serial communication interface for easy control with microcontrollers

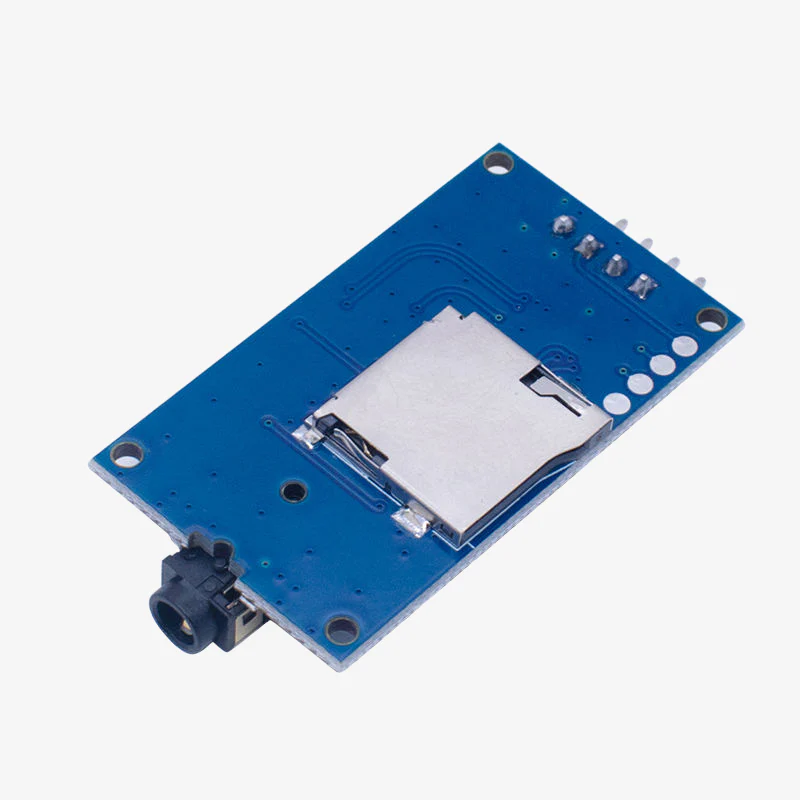

3. TF card slot supports up to 32GB for audio storage
4. Compact and plug-and-play design
5. Capable of playing specific tracks, adjusting volume, looping, and more via serial commands
6. Integrated 3.5mm audio jack for direct audio output
7. Stable performance with onboard decoding and DAC output

Specifications of YX5300 MP3 Player Module:

• Model: YX5300
• Operating Voltage: 3.2V to 5V
• Audio Format: MP3
• Interface: UART (Serial)
• TF Card Support: Up to 32GB (FAT16/FAT32)
• Output: 3.5mm audio interface
• Communication Baud Rate: 9600 bps (default)
• Module Size: Approx. 45mm x 34mm
• Mounting holes provided for easy installation

Package Includes:

1 × YX5300 MP3 Voice Player Serial Control Music Module with TF Card Slot
