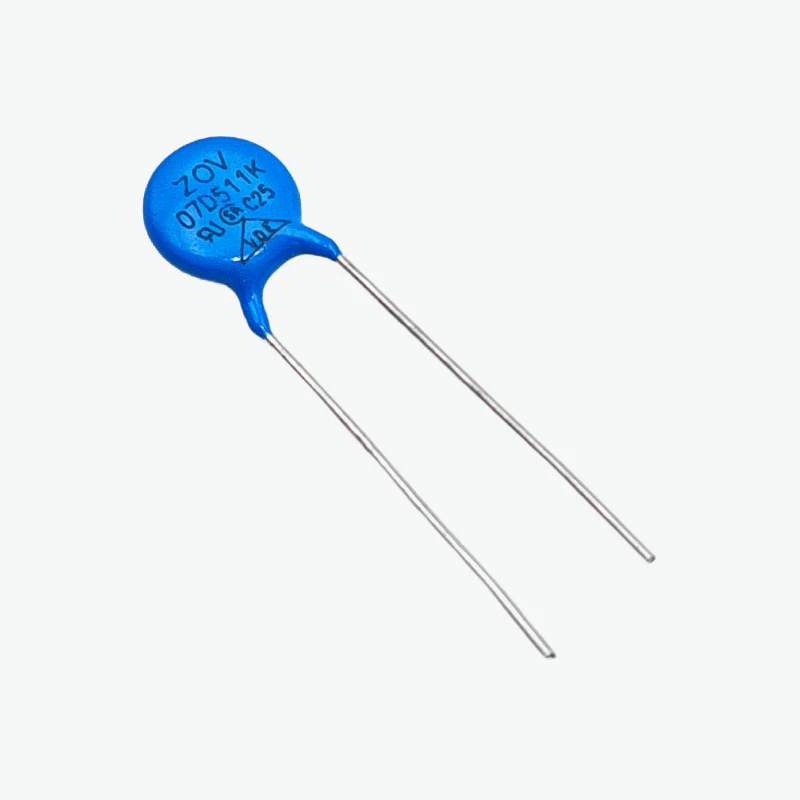

The ZOV 07D511K Metal Oxide Varistor is a compact and reliable voltage-dependent resistor designed to protect sensitive electronic components from voltage surges and transient spikes. It effectively clamps high voltage and absorbs excess energy, making it ideal for use in power supplies, adapters, household appliances, and industrial equipment.

Features of ZOV 07D511K Metal Oxide Varistor:

1. Varistor Voltage: 510V
2. Compact 7mm disc size
3. Fast response time to transient voltages
4. High surge energy absorption capability
5. Long operating life and high reliability
6. Suitable for AC line protection and lightning suppression applications

Specifications of ZOV 07D511K Metal Oxide Varistor:

• Model: ZOV 07D511K
• Varistor Voltage (V₁mA): 510V
• Maximum Allowable Voltage (AC): 320V
• Maximum Allowable Voltage (DC): 420V
• Max Clamping Voltage (8/20µs): ~840V
• Energy (10/1000µs): ~22J
• Disc Diameter: 7mm
• Lead Pitch: Standard radial
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × ZOV 07D511K Metal Oxide Varistor
