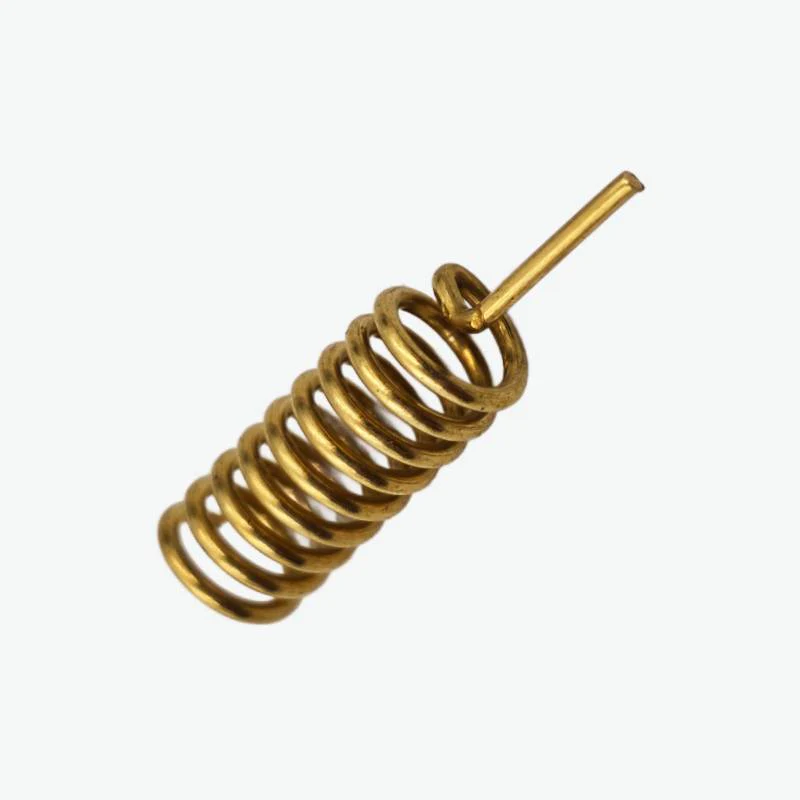

The 868/915MHz AH1G.312B 868/915MHz 1dBi High-Gain Straight Spring Antenna is a compact and efficient antenna designed for ISM band communication systems. Its spring-type structure provides stable and efficient signal transmission, making it ideal for IoT devices, transmitters, and receivers operating at 868/915MHz frequencies.

Features:

1. High-gain spring design for improved signal performance

2. Optimized for 868/915MHz ISM and LoRa applications

3. Compact and efficient with stable transmission

4. Operates reliably across wide temperature ranges (-40°C to +85°C)

5. DIP mounting for easy PCB integration

Specifications:

• Model: AH1G.312B
• Frequency: 868/915 MHz

• Impedance: 50Ω

• VSWR: ≤2.5

• Gain: 1.0 dBi

• Polarization: Vertical / Omni

• Mounting Type: DIP

• Material: Copper

• Color: Copper

• Size: 5.0 × 24.0 mm

• Weight: 0.6 g

• Operating Temperature: -40°C to +85°C


Package Includes:

1 × 868/915MHz 1dBi High-Gain Straight Spring DIP Antenna
