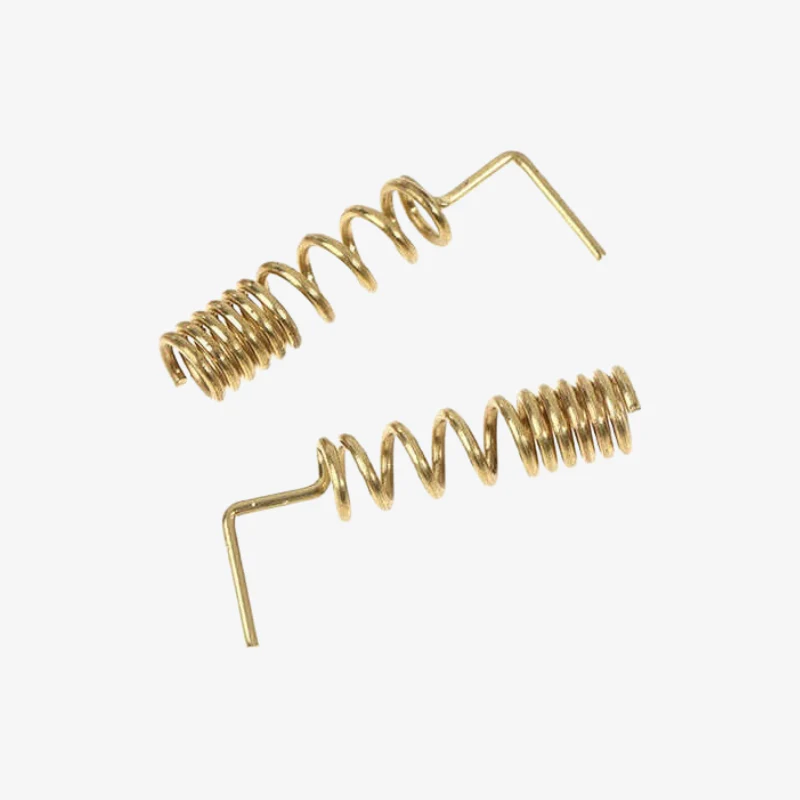

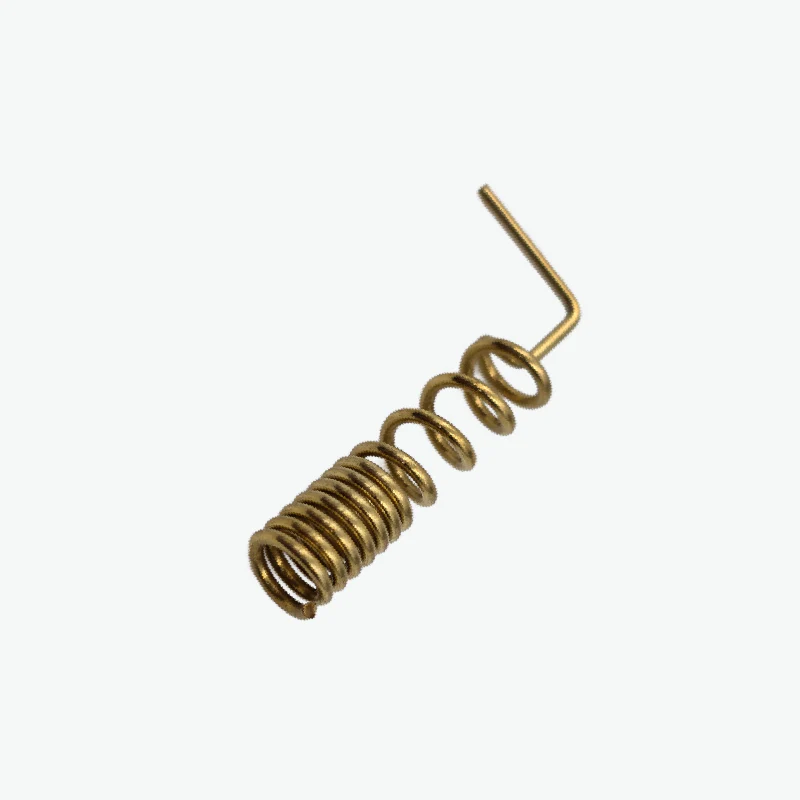

The AntennaHome AH1G.302 868/915MHz & GSM900/1800MHz Spring DIP Antenna is a compact and efficient antenna designed for ISM, GSM, and NB-IoT communication systems. Its spring-type construction ensures stable signal transmission with minimal space usage, making it suitable for LoRa, GSM, and wireless data transmission applications.

Features:

1. Compact helical spring design for space-efficient integration

2. Supports 868/915MHz ISM and GSM900/1800MHz frequency bands

3. Ensures stable and reliable signal performance

4. Vertical omni-directional radiation pattern for wide coverage

5. DIP mounting for easy PCB assembly

Specifications:

• Model: AH1G.302
• Frequency: 868/915 MHz, 900/1800 MHz

• Impedance: 50Ω

• VSWR: ≤2.5

• Gain: 1.0 dBi

• Polarization: Vertical / Omni

• Mounting Type: DIP

• Material: Copper / ABS

• Color: Copper

• Size: 5.0 × 24.0 mm

• Weight: 0.8 g

• Operating Temperature: -40°C to +85°C


Package Includes:

1 × AntennaHome AH1G.302 868/915MHz & GSM900/1800MHz Spring DIP Antenna
