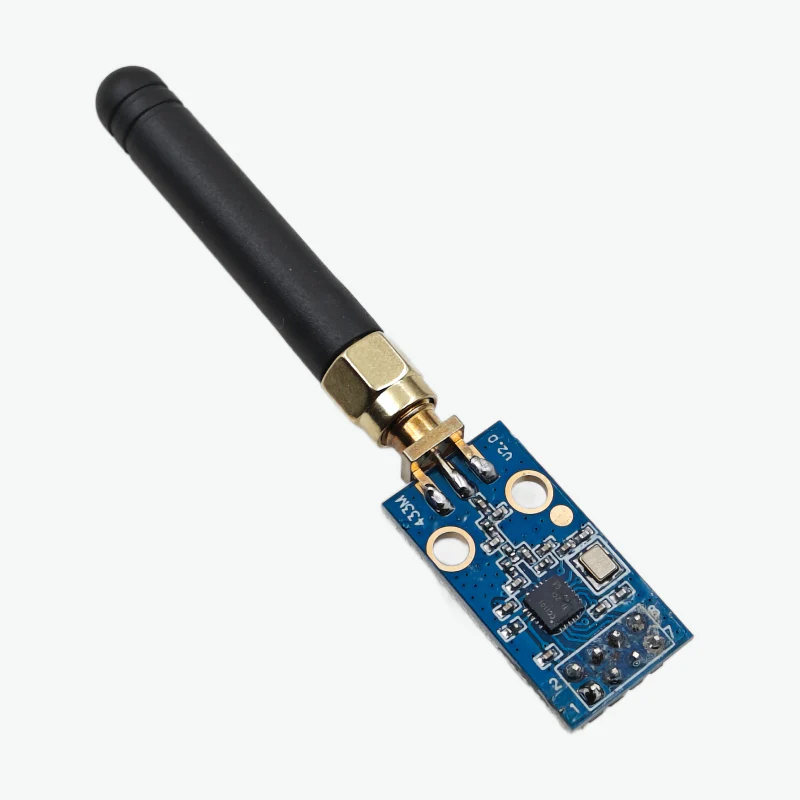

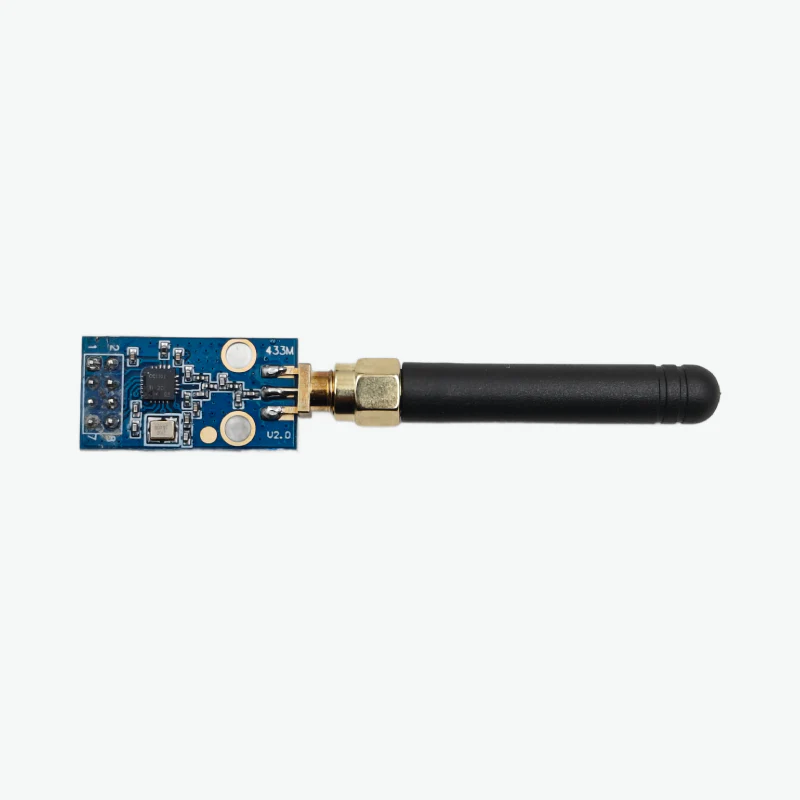

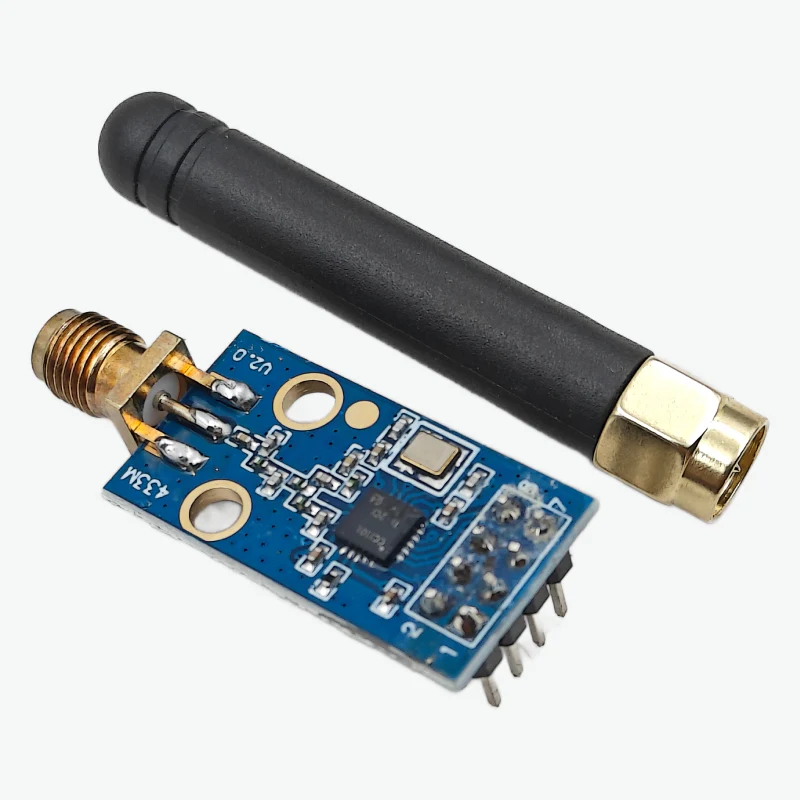

The CC1101 SMA Antenna Wireless Transceiver Module is a highly integrated, low-power RF module designed for wireless communication in the sub-1GHz ISM band. Powered by the TI CC1101 RF IC, it supports multiple modulation formats and delivers long-range, stable data transmission with excellent sensitivity and noise immunity. With an onboard SMA antenna connector, it allows users to attach any external antenna of their choice, making it ideal for IoT devices, wireless sensors, remote control systems, and embedded telemetry applications.

Features:

1. Low-power, high-performance RF transceiver based on TI CC1101
2. Operates in sub-1GHz ISM bands for long-range, interference-resistant communication
3. Supports ASK, FSK, GFSK, and MSK modulation
4. Onboard SMA connector for external antenna attachment
5. SPI communication interface for easy microcontroller integration
6. Adjustable transmission power and data rate
7. Suitable for wireless nodes, telemetry, sensors, and IoT systems

Specifications:

• Chipset: TI CC1101 RF Transceiver
• Operating Frequency: 315 / 433 / 868 / 915 MHz (variant dependent)
• Modulation Types: ASK, FSK, GFSK, MSK
• Supply Voltage: 1.8V – 3.6V (3.3V recommended)
• Communication Interface: SPI
• Output Power: Up to +10 dBm (programmable)
• Data Rate: 0.6 kbps – 600 kbps
• Receiver Sensitivity: Up to –110 dBm (typ., low data rate)
• Antenna Interface: SMA Connector (External antenna required)
• Operating Temperature: –40°C to +85°C
• Range: Several hundred meters (with suitable antenna)
• Applications: IoT, wireless sensing, remote control, telemetry, automation

Package Includes:

1 × CC1101 SMA Antenna Wireless Transceiver Module
