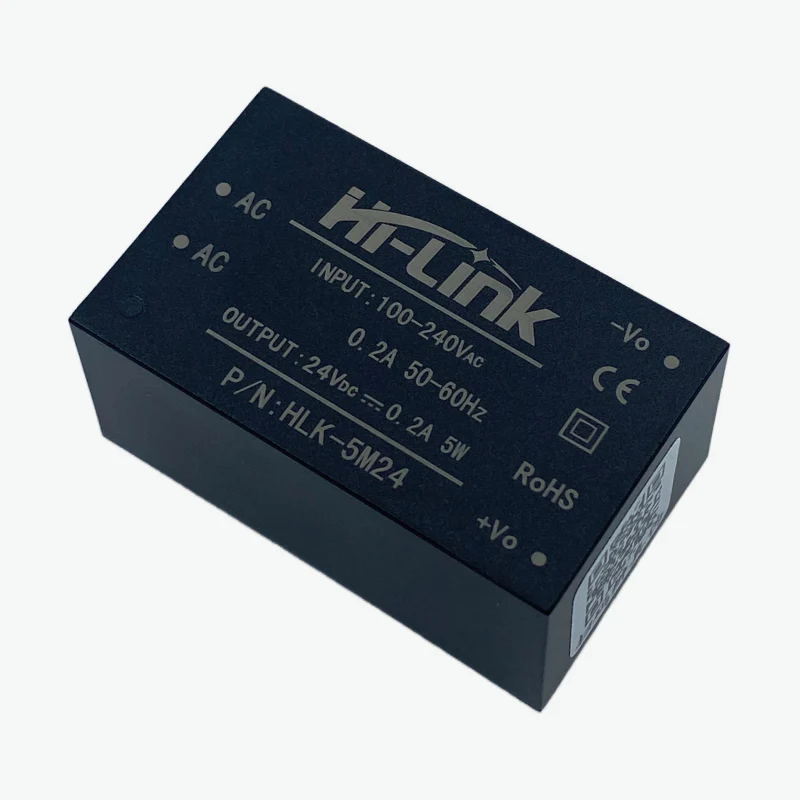

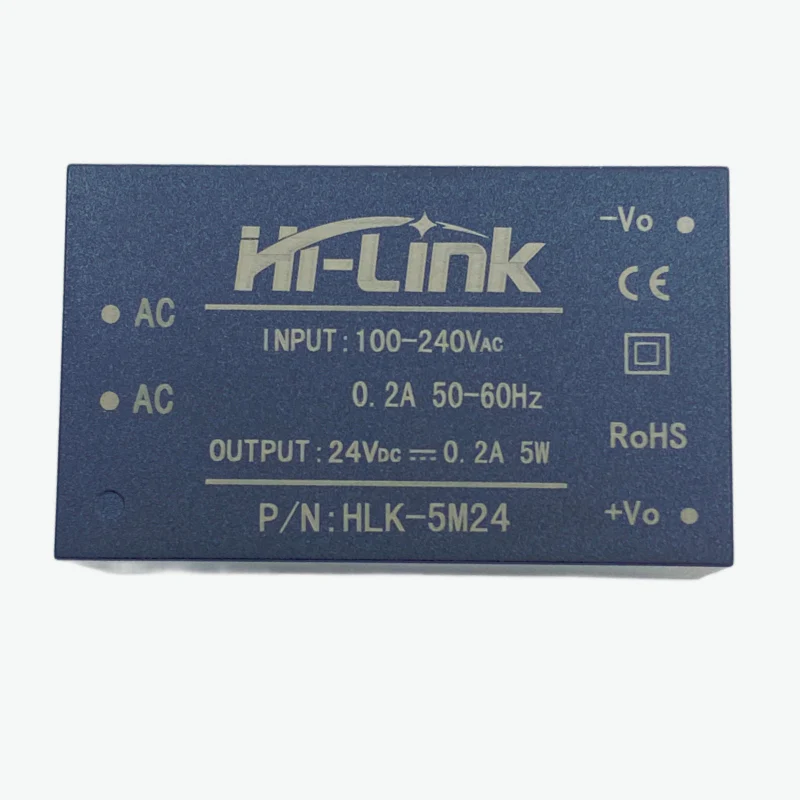

Hi-Link 24V 5W Switch Power Supply Module (HLK-5M24) is designed to deliver stable 24V output with high efficiency and low noise. Compact AC-DC power module Ideal for industrial, automation, and embedded power applications.

Features:

1. Wide Input Voltage Range (100–240V AC)
2. Stable 24V Output
3. Ultra-Compact and Lightweight Design
4. Low Ripple and Low Noise
5. Overload and Short Circuit Protection
6. High Efficiency and Power Density
7. Meets EMC and Safety Standards
8. Low No-Load Power Consumption (<0.1W)

Specifications:

Parameter	Value
Brand	Hi-Link
Model	HLK-5M24
Input Voltage	100 – 240V AC
Output Voltage	24V
Output Current	208mA
Output Power	5W
Efficiency	69%
Color	Black
Dimensions	44 × 20 × 25 mm
Weight	28g

If you're exploring similar compact AC-DC power solutions, you can also check out the Hi-Link 3.3V 5W Power Supply Module (HLK-5M03) for low-voltage applications, the Hi-Link 5V 2W Power Supply Module (HLK-2M05) for small embedded projects, the Hi-Link 5V 10W Power Supply Module (HLK-10M05B) for standard electronics setups, and the Hi-Link 12V 5W Power Supply Module (HLK-5M12) for higher voltage requirements, all offering reliable and efficient power conversion for a wide range of applications.

Package Includes:

1 x Hi-Link 24V 5W Switch Power Supply Module (HLK-5M24)
