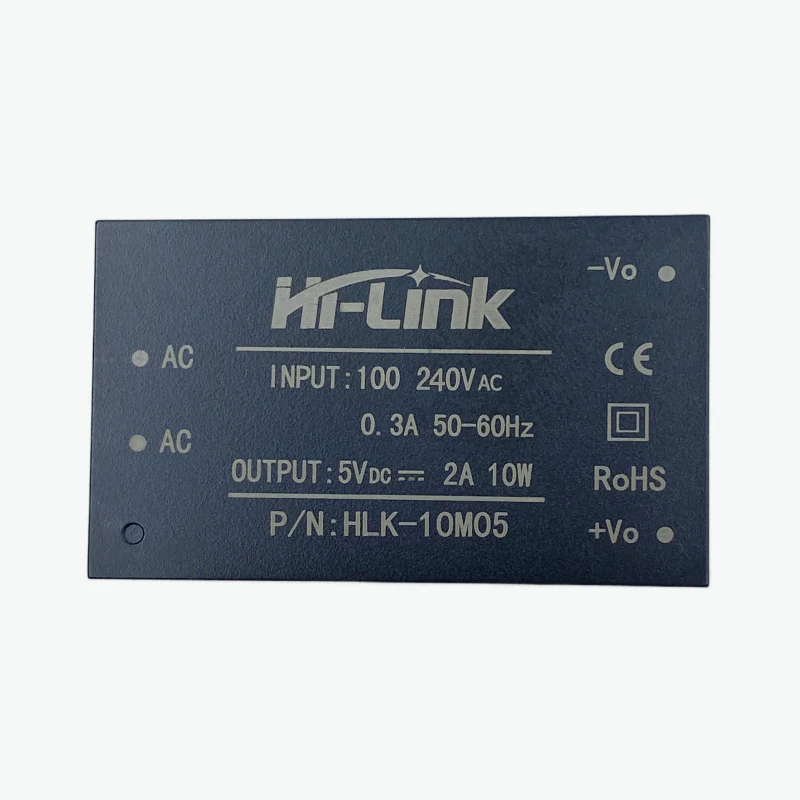

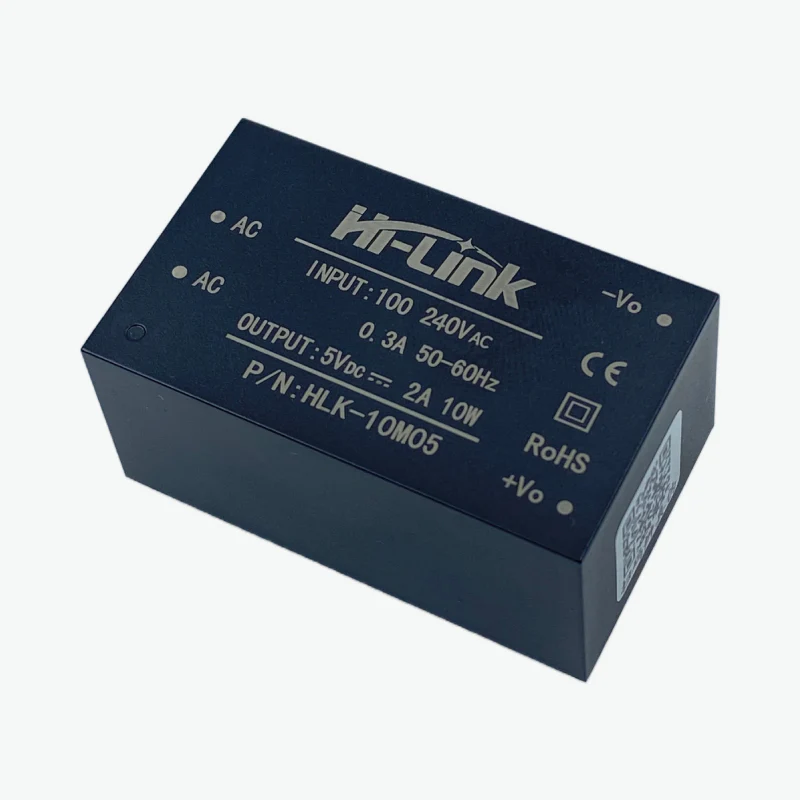

Hi-Link 5V 10W Switch Power Supply Module (HLK-10M05) is design to delivering stable 5V output with high efficiency and reliable protection. Compact AC-DC power module Ideal for IoT devices, embedded systems, and industrial applications.

Features:

1. Ultra-Compact and Ultra-Thin Design
2. Wide Input Voltage Range (85–265V AC)
3. Stable 5V Output up to 2A
4. Low Ripple and Noise Output
5. Over-Current and Short Circuit Protection
6. Auto Recovery Function
7. IP65 Waterproof and Dustproof
8. Long Operational Life (>100,000 Hours)
9. Low Standby Power Consumption (<0.1W)
10. Meets UL, CE, EMC Safety Standards

Specifications:

Parameter	Value
Brand	Hi-Link
Model	HLK-10M05
Input Voltage	85 – 265V AC
Output Voltage	5V
Output Current	2000mA
Output Power	10W
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +80°C
Humidity Range	5% – 95% RH
Pressure	80 – 106 kPa
Dimensions	47.5 × 28.5 × 22 mm
Weight	39g

If you're exploring similar compact AC-DC power solutions, you can also check out the Hi-Link 3.3V 5W Power Supply Module (HLK-5M03) for low-voltage applications, the Hi-Link 5V 2W Power Supply Module (HLK-2M05) for small embedded projects, the Hi-Link 12V 5W Power Supply Module (HLK-5M12) for standard electronics setups, and the Hi-Link 24V 5W Power Supply Module (HLK-5M24) for higher voltage requirements, all offering reliable and efficient power conversion for a wide range of applications.

Package Includes:

1 x Hi-Link 5V 10W Switch Power Supply Module (HLK-10M05)
