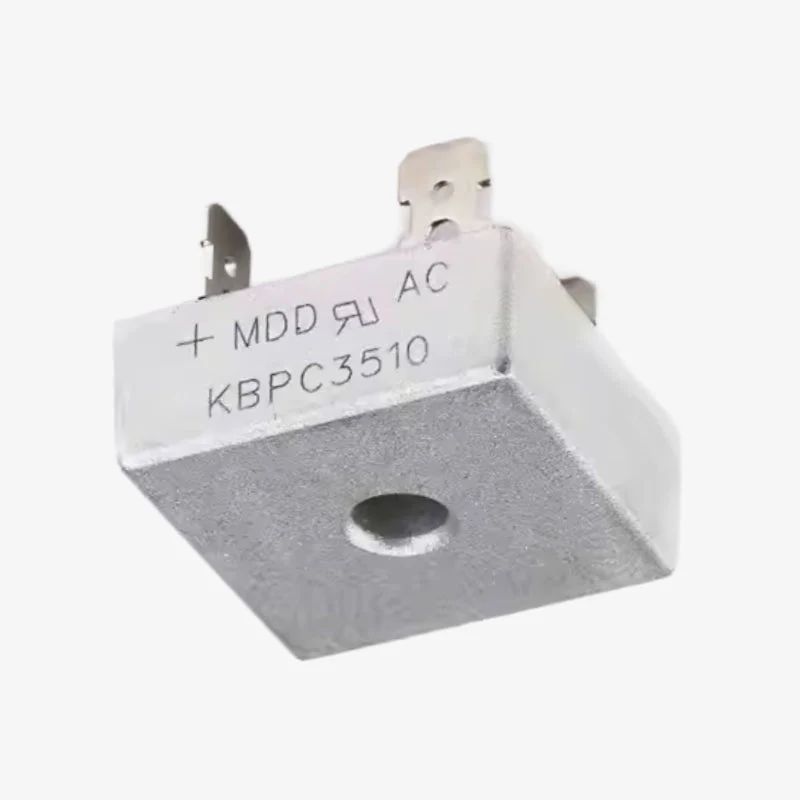

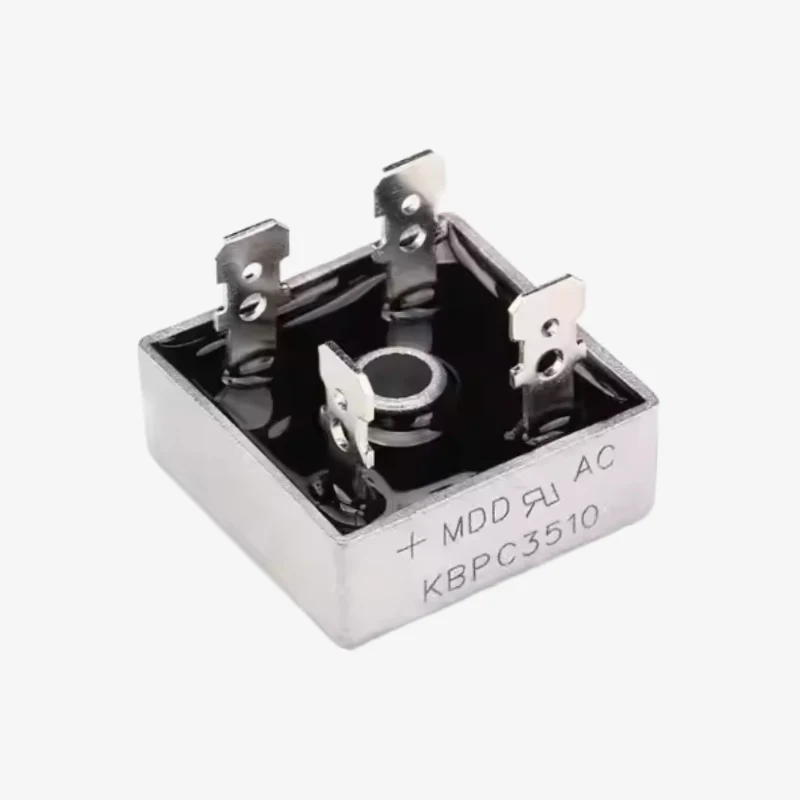

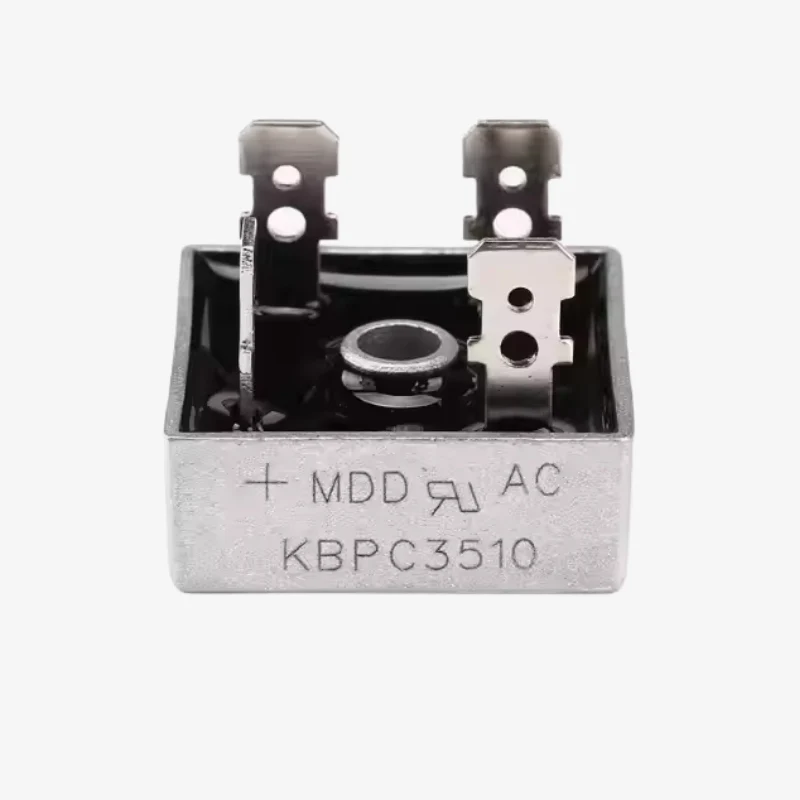

The KBPC3510 is a high-power 35A 1000V single-phase bridge rectifier designed for AC to DC conversion in medium to high-current applications. It efficiently converts alternating current (AC) into direct current (DC), making it ideal for use in power supplies, motor drivers, battery chargers, and industrial equipment. Its robust metal case ensures better heat dissipation and long-term durability, while the screw hole allows easy chassis mounting.

Features of KBPC3510 Bridge Rectifier:

1. 35A current capacity suitable for high-load applications
2. 1000V peak reverse voltage for high-voltage input tolerance
3. Single-phase full-wave rectification for efficient conversion
4. Metal body with screw hole for improved heat management
5. Ideal for power conversion, control panels, and battery charging

Specifications of KBPC3510 Bridge Rectifier:

• Maximum Average Current (Io): 35A
• Peak Reverse Voltage (Vr): 1000V
• Forward Voltage Drop (Vf): ≤1.1V per diode
• Surge Current (Ifsm): 300A
• Operating Temperature: -55°C to 150°C
• Mounting Type: Chassis mount with screw terminal

Package Includes:

1 × KBPC3510 35A 1000V Single-Phase Bridge Rectifier Diode Module
