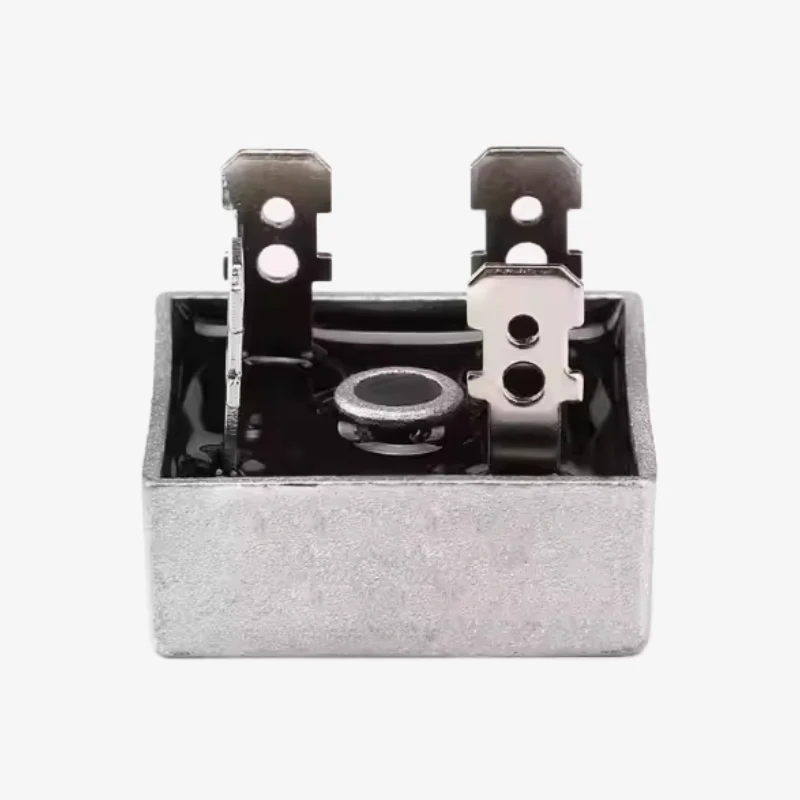

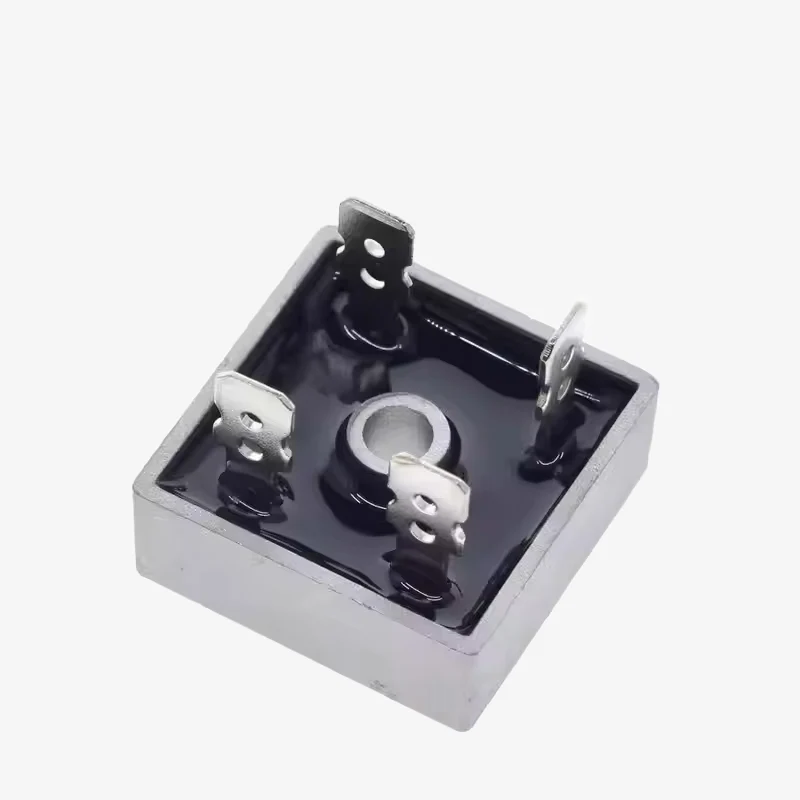

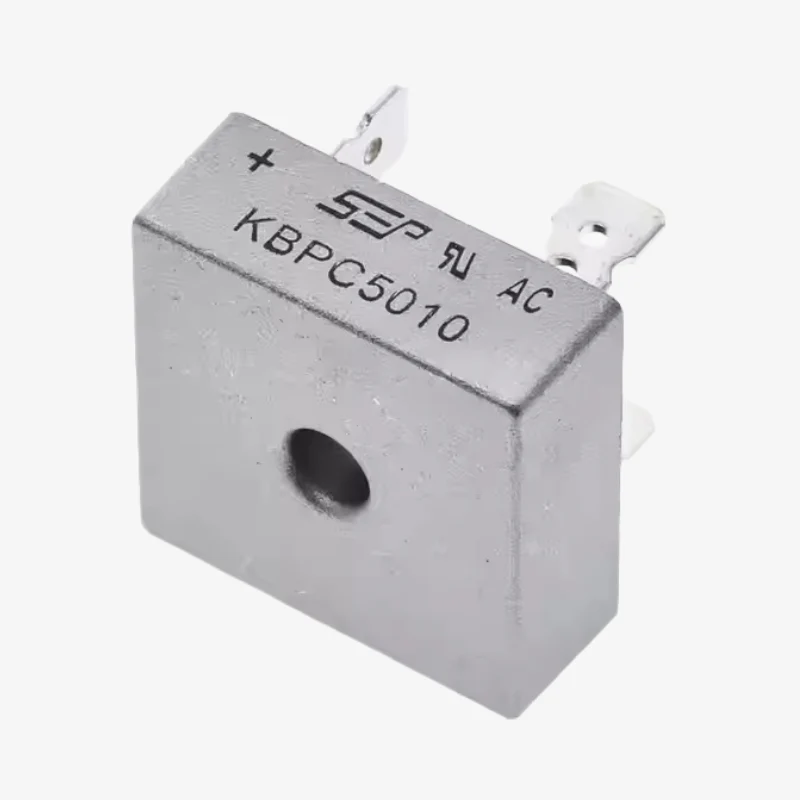

The KBPC5010 is a high-power 50A 1000V bridge rectifier designed for AC to DC conversion in high-current applications. It efficiently converts AC input into stable DC output, making it ideal for power supplies, motor drivers, industrial control systems, and battery charging circuits. The metal case design enhances heat dissipation, ensuring reliable and long-term performance.

Features of KBPC5010 Bridge Rectifier:

1. 50A high current capacity for heavy-duty applications.
2. 1000V peak reverse voltage for high-voltage AC rectification.
3. Full-wave rectification for efficient AC-DC conversion.
4. Metal case with screw hole for easy mounting and heat dissipation.
5. Suitable for power supplies, inverters, and industrial control circuits.

Specifications of KBPC5010 Bridge Rectifier:

• Maximum Average Current (Io): 50A
• Maximum Reverse Voltage (Vr): 1000V
• Forward Voltage Drop (Vf): ≤1.1V per diode
• Surge Current (Ifsm): 400A
• Operating Temperature: -55°C to 150°C
• Mounting Type: Screw terminal, chassis mount

Package Includes:

1 × KBPC5010 50A 1000V Bridge Rectifier Diode
