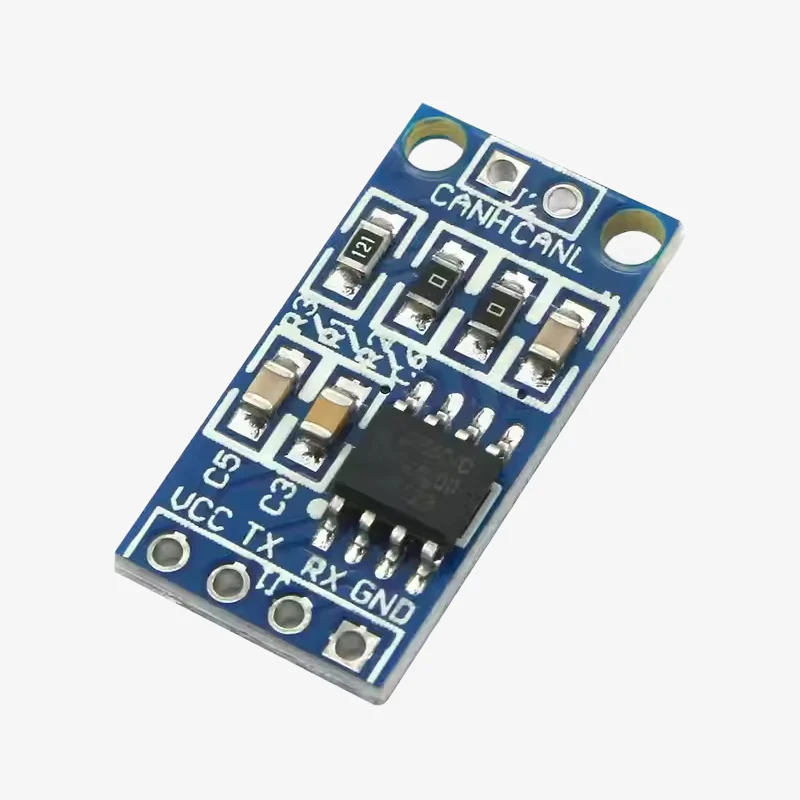

The TJA1050 CAN Bus Driver Module is a high-speed CAN transceiver designed for use in automotive and industrial applications. It serves as the interface between the CAN protocol controller and the physical bus, enabling reliable communication in a Controller Area Network (CAN). This module is compatible with 3.3V and 5V systems, making it ideal for use with microcontrollers like Arduino, STM32, and others in automotive electronics, robotics, and industrial control.

Features of TJA1050 CAN Bus Driver Module:

1. Based on TJA1050 high-speed CAN transceiver IC
2. Compatible with 3.3V and 5V logic levels
3. Fully ISO 11898 compliant for automotive communication
4. Short-circuit protection on CANH and CANL lines
5. Slope control for reduced radio emissions
6. Thermal shutdown protection
7. Ideal for automotive, industrial, and robotic applications
8. Small form factor and easy integration

Specifications of TJA1050 CAN Bus Driver Module:

• Operating Voltage: 5V
• CAN Protocol Support: ISO 11898 standard
• Logic Level Compatibility: 3.3V / 5V
• Interface Pins: VCC, GND, TXD, RXD, CANH, CANL
• Data Rate: Up to 1 Mbps
• ESD Protection: ±6 kV (HBM)

• Operating Temperature: -40°C to +125°C

Package Includes:

1 × TJA1050 CAN Bus Transceiver Module
