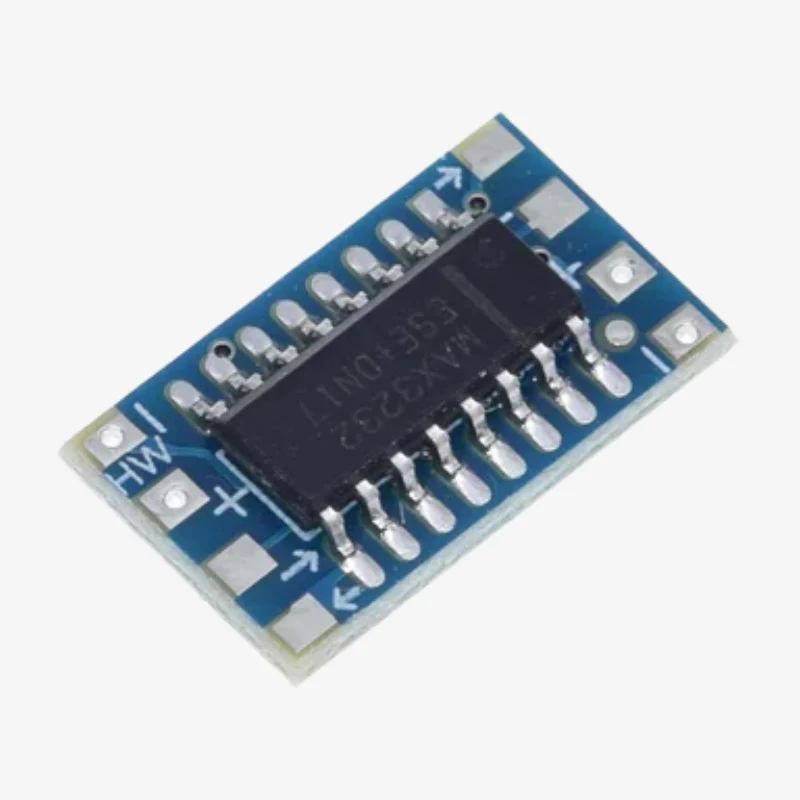

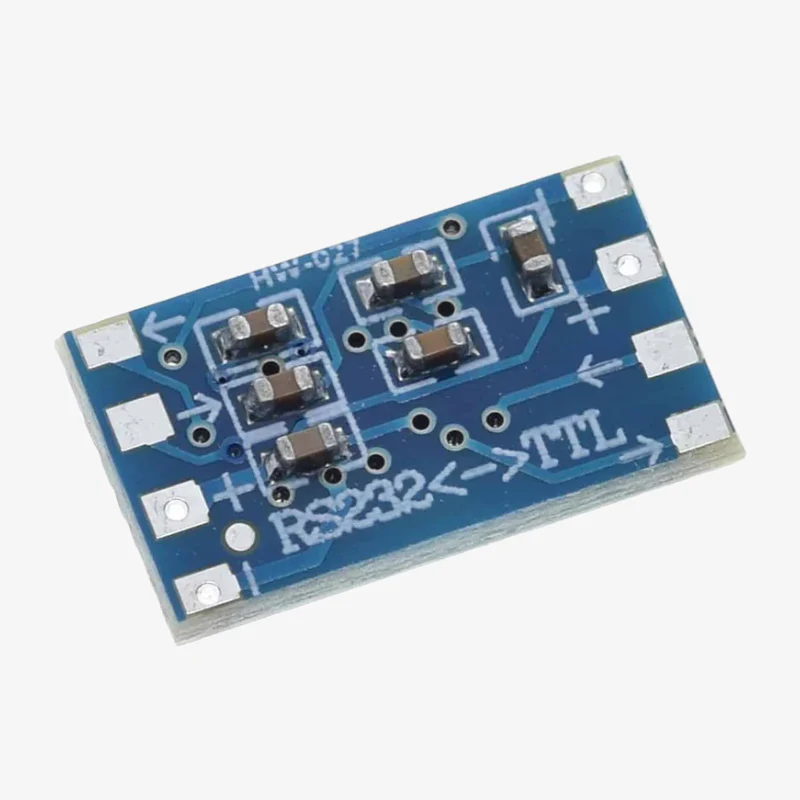

The MAX3232 Serial Port Mini RS232 to TTL Converter Adapter Module is a compact and efficient module designed to convert RS232 signal levels to TTL logic levels. It allows microcontrollers and embedded systems to communicate with RS232 devices, such as computers and industrial equipment. Featuring the MAX3232 IC, this module supports baud rates up to 120kbps and operates over a wide voltage range, making it ideal for various serial communication applications.

Features of Mini RS232 to TTL Converter Adapter Module:

1. Converts RS232 signals to TTL logic levels and vice versa
2. Uses MAX3232 IC for stable and reliable communication
3. Supports baud rates up to 120kbps
4. Wide operating voltage range (3.0V – 5.5V)
5. Compact size for easy integration into projects
6. Compatible with microcontrollers like Arduino, STM32, and Raspberry Pi
7. Low power consumption with integrated charge pumps

Specifications of Mini RS232 to TTL Converter Adapter Module:

• IC: MAX3232
• Communication Standard: RS232 to TTL
• Baud Rate: Up to 120kbps
• Operating Voltage: 3.0V – 5.5V
• Signal Pins: TX, RX, CTS, RTS
• Dimensions: Mini compact board design
• Temperature Range: -40°C to +85°C

Package Includes:

1 × Mini RS232 to TTL Converter Adapter Module Board
