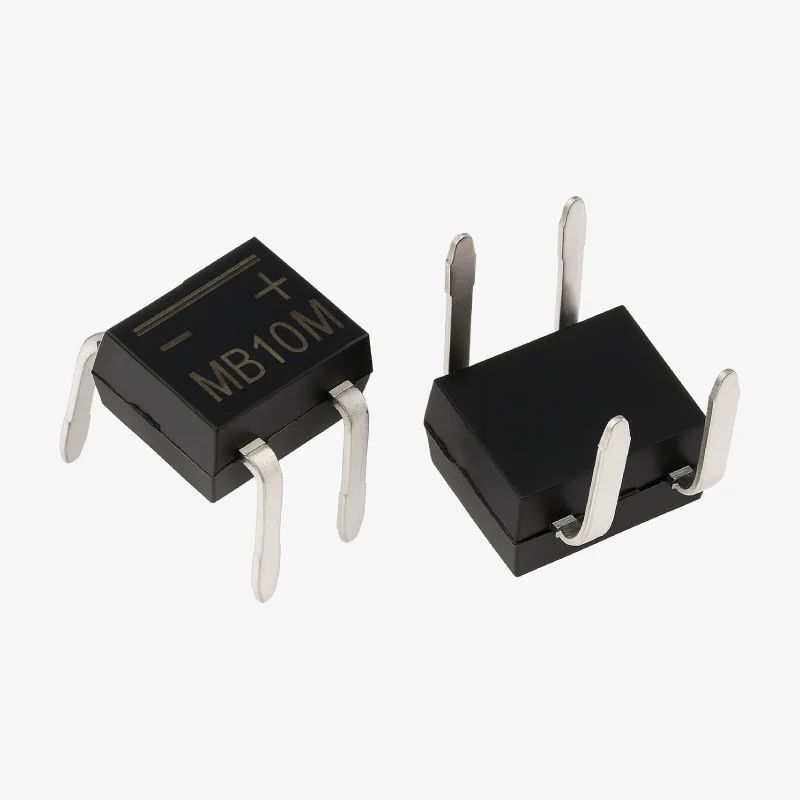

The MB10M Bridge Rectifier IC is a compact, high-efficiency full-wave bridge rectifier designed for AC to DC conversion in low-power electronic circuits. It is built in a DIP-4 package that simplifies PCB mounting and integration into various projects. This IC is ideal for power supplies, chargers, LED drivers, and other AC-to-DC applications where compact size and reliability are crucial.

It offers high surge current capability, low forward voltage drop, and dependable rectification performance in a small footprint, making it suitable for both DIY electronics and industrial designs.

Features of MB10M Bridge Rectifier IC:

1. Full-wave bridge rectifier in DIP-4 package
2. Handles up to 1A of continuous forward current
3. Peak reverse voltage up to 1000V
4. Low forward voltage drop for efficient power conversion
5. High surge current capability up to 30A
6. Reliable AC-to-DC conversion for compact power supply designs
7. Simple PCB mounting with through-hole DIP-4 configuration

Specifications of MB10M Bridge Rectifier IC:

• Model: MB10M
• Maximum Average Forward Current (Io): 1A
• Maximum Reverse Voltage (Vr): 1000V
• Peak Surge Forward Current (Ifsm): 30A
• Forward Voltage Drop (Vf): ≤ 1.1V (typical)
• Operating Temperature Range: -55°C to +150°C
• Package Type: DIP-4
• Package Pitch: 5.08mm

Package Includes:

1 × MB10M Bridge Rectifier IC - DIP-4 Package
