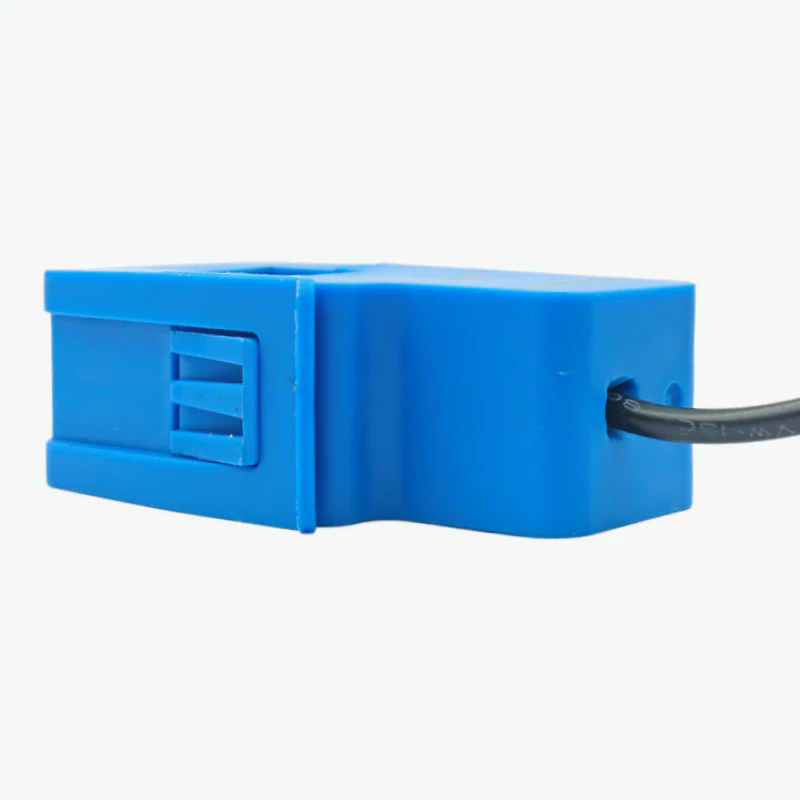

The SCT103 is a high-precision, non-invasive AC current sensor designed to measure alternating current up to 30A without direct electrical contact. Its split-core clamp design allows for easy installation around the live wire without interrupting the circuit. This version comes with a 3.5mm audio jack connector for convenient plug-and-play use with compatible development boards and monitoring systems.

Features of SCT103 Non-invasive AC Current Sensor:

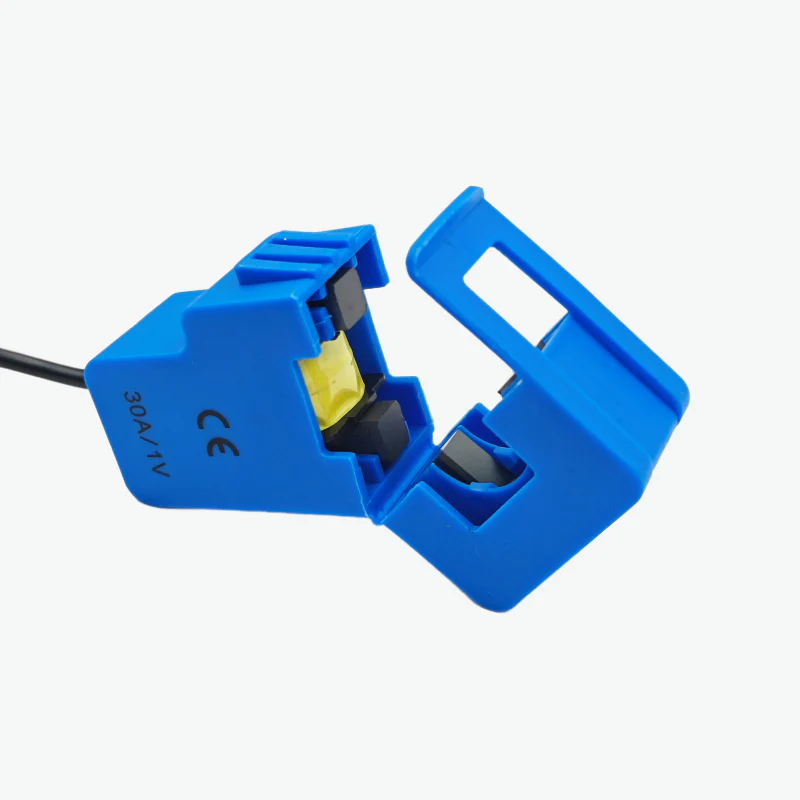

1. Split-core clamp sensor for easy and safe AC current measurement
2. Measures up to 30A AC with high accuracy
3. Non-invasive design ensures electrical isolation
4. Pre-attached 3.5mm audio jack for hassle-free interfacing
5. Ideal for Arduino, Raspberry Pi, and energy monitoring systems

Specifications of SCT103 Non-invasive AC Current Sensor:

• Model: SCT103
• Type: Split-core current transformer
• Current Range: 0–30A AC
• Output Type: Analog (proportional to current)
• Connector: 3.5mm audio jack
• Dielectric Strength: 6000V AC
• Operating Temperature: -25°C to +70°C
• Cable Length: ~1 meter

Package Includes:

1 x SCT103 30A Non-invasive AC Current Sensor Clamp with 3.5mm Jack
