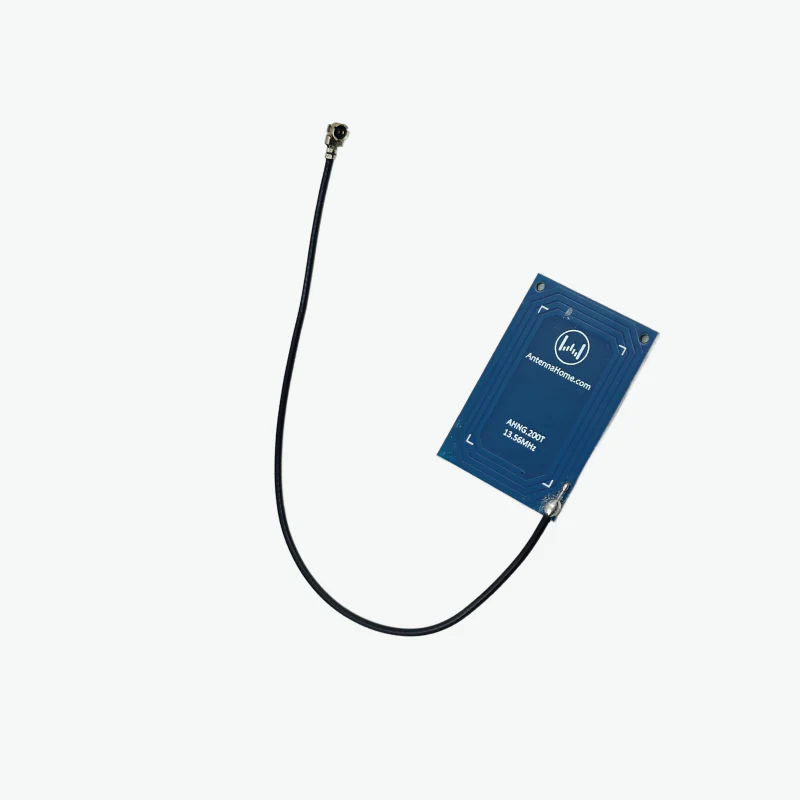

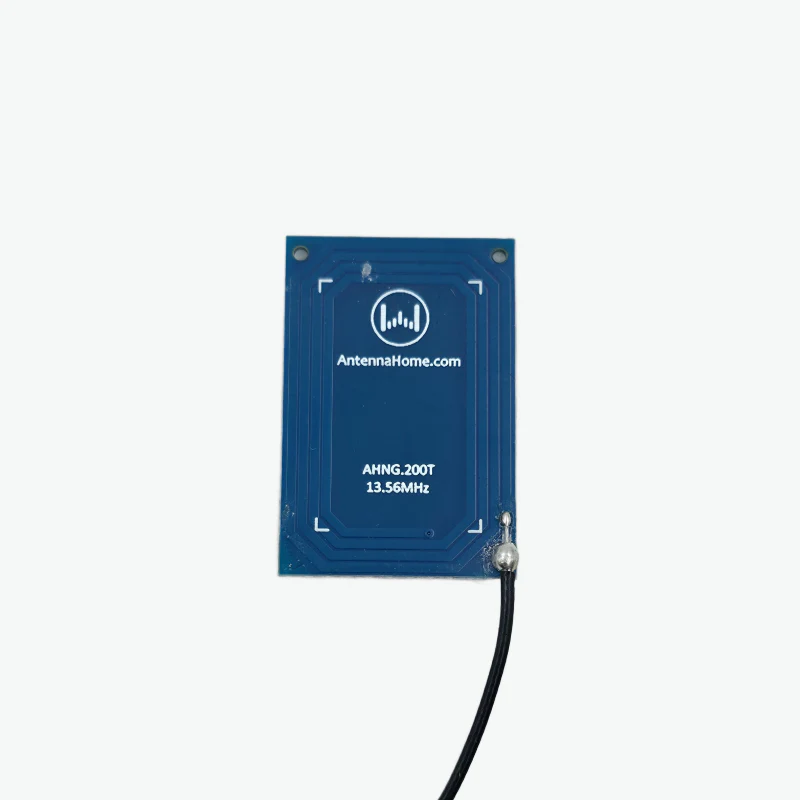

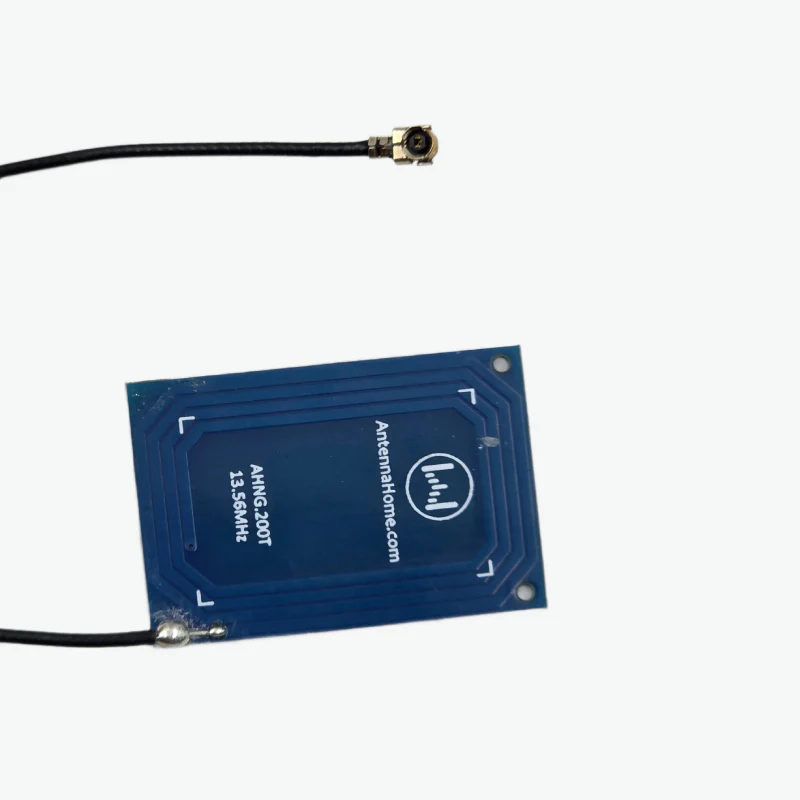

The PCB3020 13.56MHz 0dBi L120 1.13 Cable IPX Antenna is a compact and reliable antenna designed for NFC and RFID communication systems. Its PCB construction ensures stable and efficient signal performance for close-range data transfer, making it ideal for RFID tag readers, NFC-enabled devices, and embedded wireless systems.

Features:

1. Stable performance for 13.56MHz RFID and NFC applications

2. Compact PCB design for efficient near-field communication

3. High reliability and consistent performance in embedded systems

4. Lightweight structure ideal for integration into compact devices

Specifications:

• Model: AHNG.200T

• Frequency: 13.56 MHz

• Impedance: As RF IC Define

• VSWR: ≤2.0

• Gain: 0 dBi

• Polarization: –

• Mounting Type: IPX connector

• Connector & Cable: PCB with 1.13 mm cable

• Material: Copper

• Size: 30 × 20 × 1.0 mm

• Weight: 1.5 g

• Operating Temperature: -40°C to +85°C

Package Includes:

1 × PCB3020 13.56MHz 0dBi L120 1.13 Cable IPX Antenna - AHNG.200T
