The 1575/1561MHz 3.8dBi L280 Fiberglass N-J GNSS Antenna - AHGG.501.L280 is a durable and high-performance antenna designed for GNSS/GPS/BD systems. Its fiberglass construction ensures excellent weather resistance and stable signal performance, making it ideal for tracking, location transfer, and receiver applications.

Features:

1. Supports GPS (1575.42MHz) and BD (1561.02MHz) dual-frequency operation

2. High gain of 3.8dBi ensures precise positioning and reliable data reception

3. Fiberglass body provides robust outdoor durability and long service life

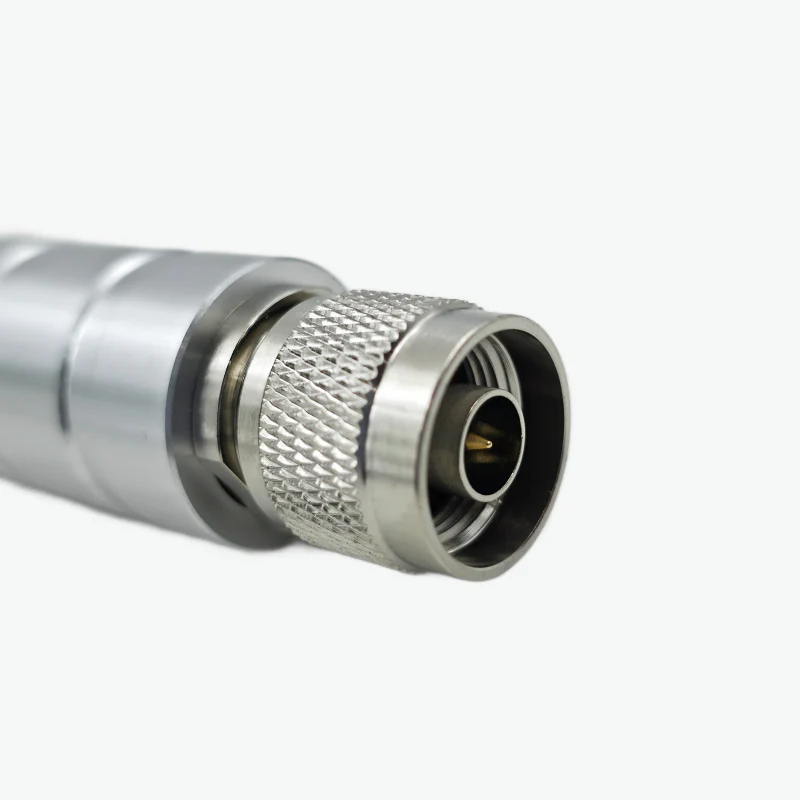

4. Equipped with N-J connector for stable RF connection and easy integration

Specifications:

• Model: AHGG.501.L280
• Frequency Range: GPS 1575.42MHz / BD 1561.02MHz

• Impedance: 50Ω

• VSWR: ≤2.0

• Gain: 3.8 dBi

• Polarization: Vertical / Omni

• Connector Type: N-J

• Material & Color: Copper / Fiberglass

• Mounting Type: External Mount

• Size: 22 ×280 mm

• Weight: 130 g

• Operating Temperature: -40°C to +85°C

Package Includes:

1 × 1575/1561MHz 3.8dBi L280 Fiberglass N-J GNSS Antenna - AHGG.501.L280
