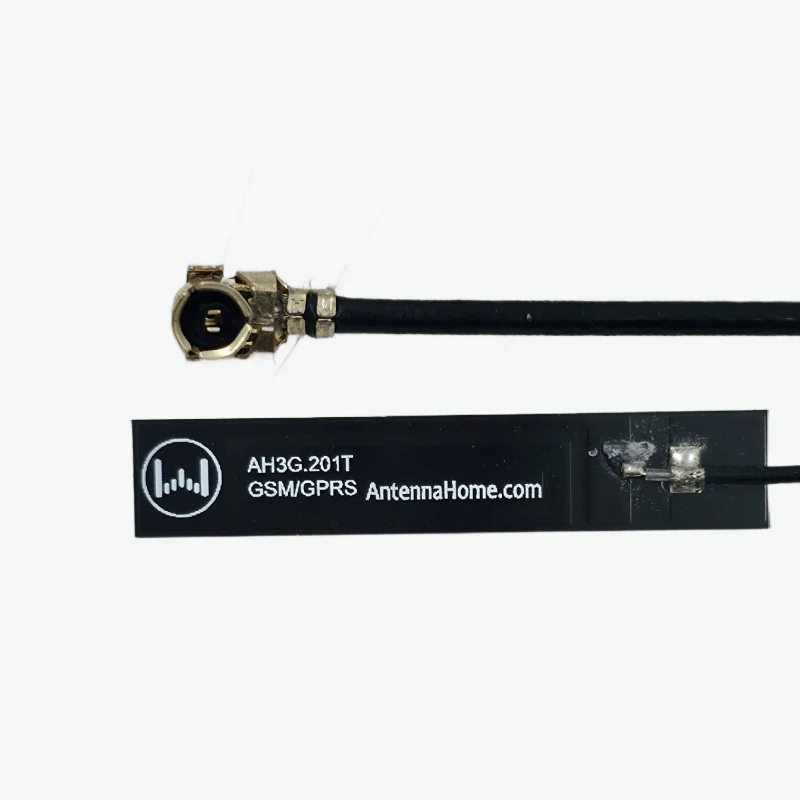

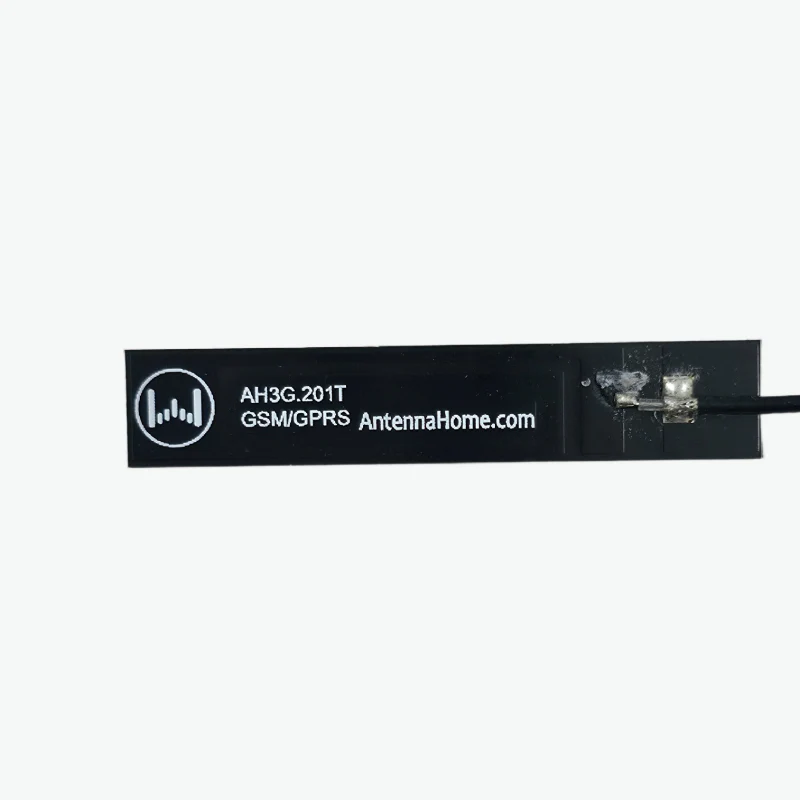

The AH3G.201T PCB4007 2G/3G 1.5dBi L120 1.13 Cable IPX Antenna is a compact and efficient antenna designed for GSM/GPRS and WCDMA wireless communication systems. Its PCB-based structure ensures reliable signal performance with high flexibility, making it ideal for GSM, GPRS, NB-IoT, Cat.1, LoRa 868/915MHz, and other 2G/3G frequency applications.

Features:

1. Stable performance for GSM/GPRS/WCDMA and NB-IoT systems

2. Lightweight PCB design for consistent signal efficiency

3. Omni-directional pattern for broad and uniform coverage

4. Compact form factor suitable for embedded wireless modules

Specifications:

• Model / Part Number: AH3G.201T

• Frequency: 824~2170 MHz

• Impedance: 50Ω

• VSWR: ≤2.0

• Gain: 1.5 dBi

• Polarization: Vertical / Omni

• Mounting Type: IPX connector

• Connector & Cable: PCB with 1.13 mm cable

• Material: Copper

• Size: 7.0 × 120 × 1.0 mm

• Weight: 1.2 g

• Operating Temperature: -40°C to +85°C

Package Includes:

1 × PCB4007 2G/3G 1.5dBi L120 1.13 Cable IPX Antenna - AH3G.201T
