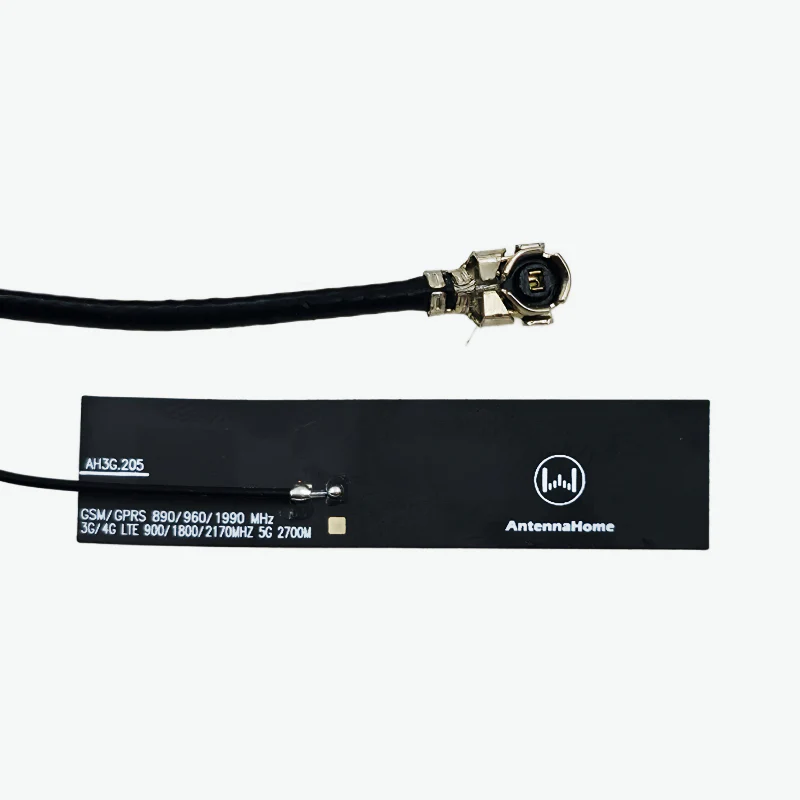

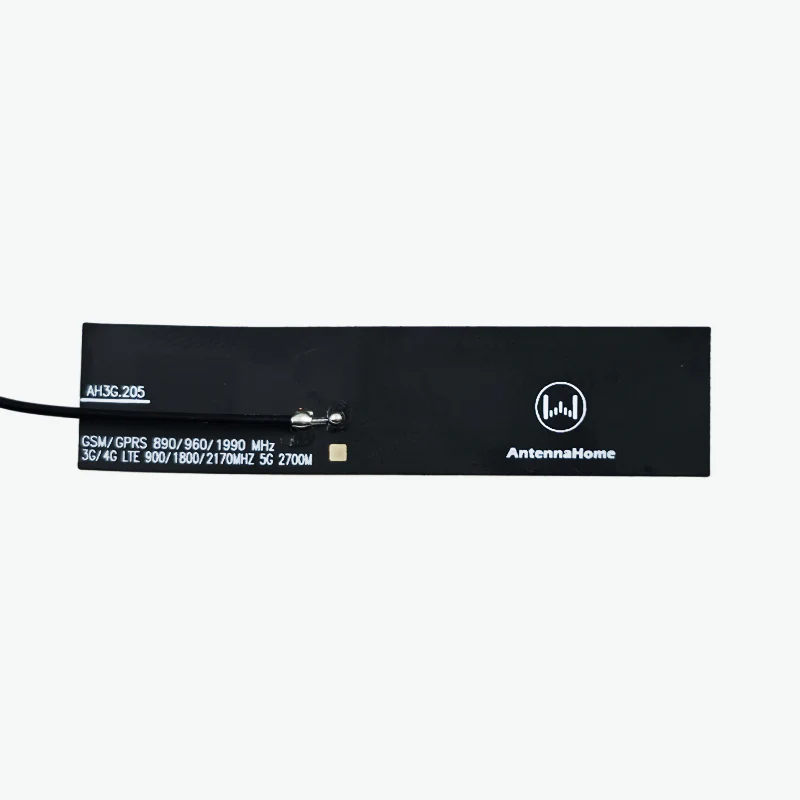

The FPC6315 3G/4G/5G 1.5dBi L120 1.13 Cable IPX Antenna - AH3G.205 delivers reliable wide-band performance for cellular and wireless communication systems. Designed for stable connectivity and compact installation, this antenna is ideal for IoT devices, smart modules, and embedded systems requiring consistent, omnidirectional signal coverage.

Features:

1. Supports GSM, WCDMA, LTE, 5G, NB-IoT, Cat.1, and LoRa 868/915 MHz applications

2. Omnidirectional vertical polarization for stable and uniform signal coverage

3. Flexible FPC design for easy integration in compact enclosures

4. Low VSWR ensures efficient and reliable signal transmission

Specifications:

• Model: AH3G.205

• Frequency: 824 ~ 2700 MHz

• Impedance: 50 Ω

• VSWR: ≤ 2.0

• Gain: 1.5 dBi

• Polarization: Vertical / Omni

• Connector & Cable: FPC with 1.13 mm cable, L = 120 mm, IPX

• Material & Color: Copper

• Mounting Type: IPX connector

• Size: 15.0 × 63.0 mm

• Weight: 0.8 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × FPC6315 3G/4G/5G 1.5dBi L120 1.13 Cable IPX Antenna - AH3G.205
