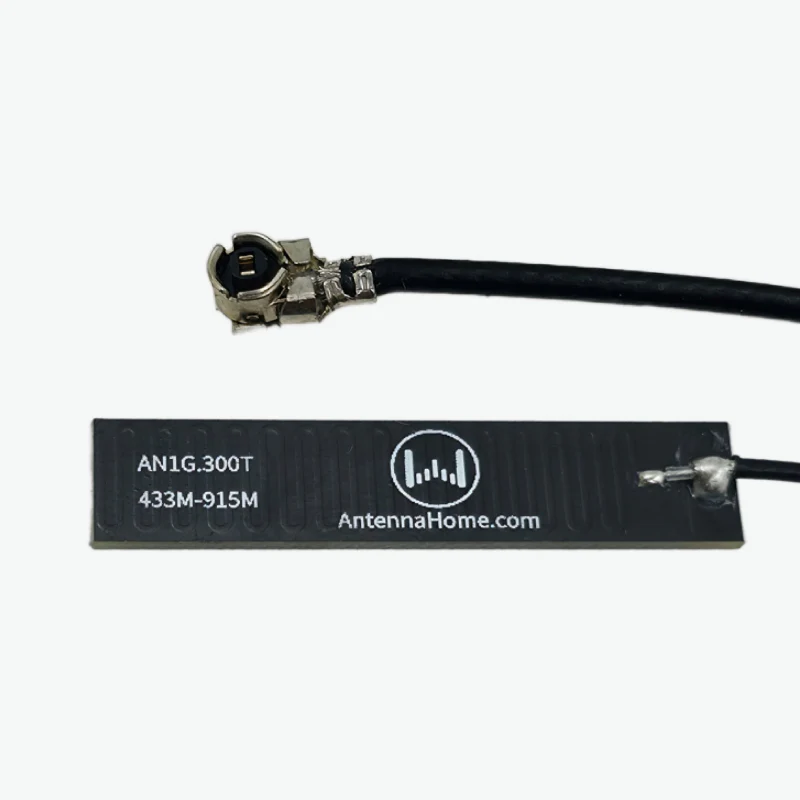

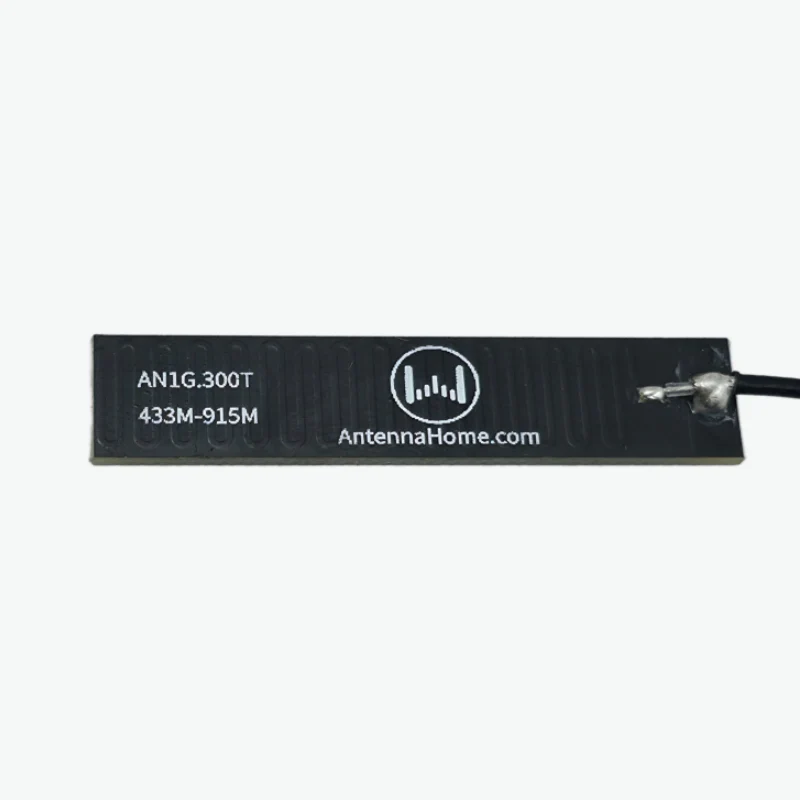

The PCB3608 433/868/915MHz 1.5dBi L120 1.13 Cable IPX Antenna is a compact and lightweight antenna designed for ISM-band wireless communication systems. Its PCB structure ensures efficient signal transmission with minimal interference, making it ideal for LoRa, remote control, wireless receiver, and transfer applications. Note: To achieve optimal performance, a PI matching network is required for tuning to the desired frequency.

Features:

1. Stable performance for ISM 433/868/915 MHz and LoRa systems

2. Lightweight PCB design for efficient signal transmission

3. Omni-directional radiation pattern for broad coverage

4. Compact form factor suitable for embedded and IoT devices

Specifications:

• Model: AH1G.300T

• Frequency: 433/868/915 MHz

• Impedance: 50Ω

• VSWR: ≤2.5

• Gain: 1.5 dBi

• Polarization: Vertical / Omni

• Mounting Type: IPX connector with 1.13 cable

• Connector & Cable: IPX / 1.13 mm

• Material: Copper / ABS

• Size: 7.5 × 36 × 1.0 mm

• Weight: 1.0 g

• Operating Temperature: -40°C to +85°C

Package Includes:

1 × PCB3608 433/868/915MHz 1.5dBi L120 1.13 Cable IPX Antenna - AH1G.300T
