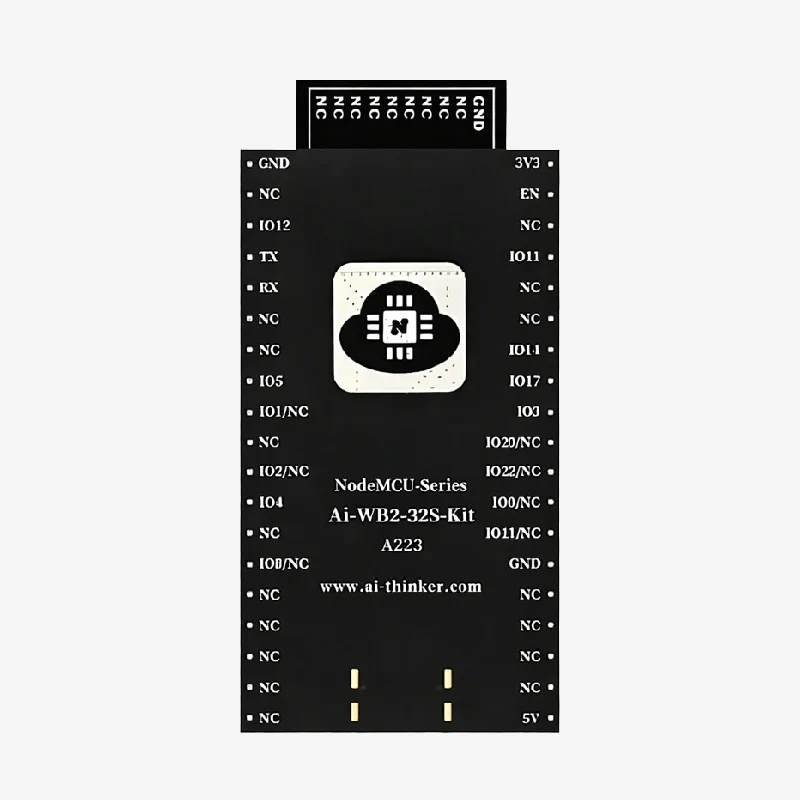

Ai-Thinker Ai-WB2-32S-Kit Development Board is a high-performance WiFi and Bluetooth development board featuring integrated IEEE 802.11 b/g/n WiFi and Bluetooth BLE 5.0 connectivity, designed with a 32-bit RISC CPU, advanced security features including AES encryption and secure boot, low power consumption modes, and rich peripheral interfaces, making it suitable for IoT, smart home, industrial automation, and secure embedded wireless applications.

Features:

1. Integrated WiFi (IEEE 802.11 b/g/n) and BLE 5.0 with Mesh support
2. DIP-38 development board for easy prototyping
3. Supports Station + BLE and Station + SoftAP + BLE modes
4. Built-in 32-bit RISC CPU with 276KB RAM
5. Advanced security with AES 128/192/256, SHA, ECC, and secure boot
6. Deep sleep current as low as 12µA
7. Supports universal AT commands and secondary development

Specifications:

• Product Type: Bluetooth and WiFi Development Board
• Model: Ai-WB2-32S
• Package Type: DIP-38
• Frequency Range: 2400 MHz to 2483.5 MHz
• WiFi Standard: IEEE 802.11 b/g/n
• Bluetooth Version: BLE 5.0
• Maximum WiFi Speed: 72.2 Mbps
• Bandwidth: 20 MHz
• Power Supply: 3.3 V / 5 V
• AC Current: 500 mA
• RAM: 276 KB
• I/O Pins: 15
• Interfaces: UART, GPIO, ADC, PWM, I2C, SPI, SDIO
• Antenna Type: Onboard PCB Antenna
• Security: WPS, WEP, WPA, WPA2 Personal, WPA2 Enterprise, WPA3
• Operating Temperature: -40°C to 85°C
• Applications: IoT devices, smart home systems, industrial automation, wireless sensors, secure embedded systems

Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 × Ai-Thinker Ai-WB2-32S-Kit Development Board - WiFi+Bluetooth 5.0
