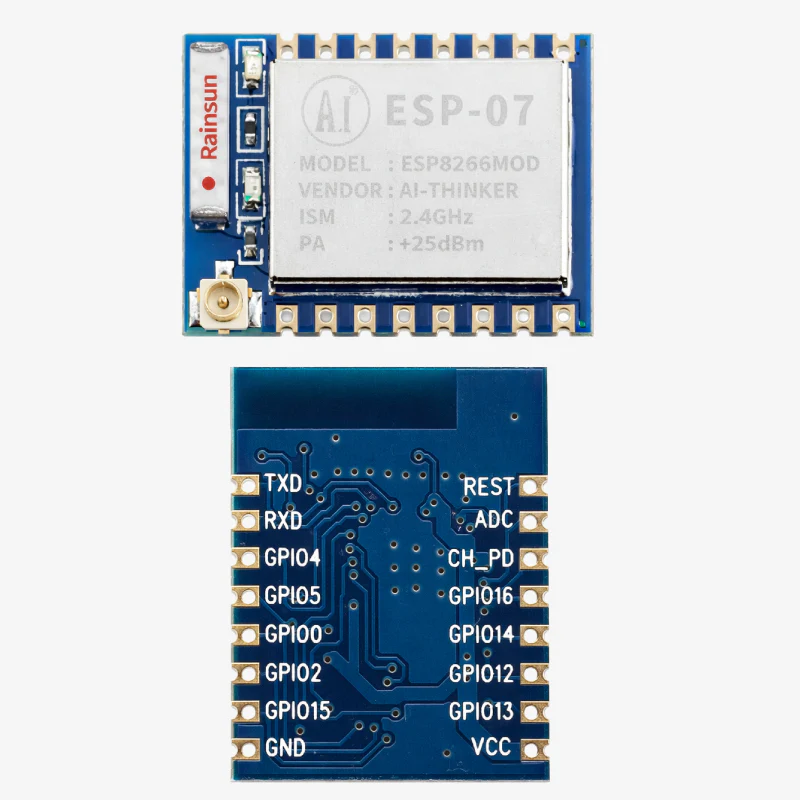

Ai Thinker (ESP-07 ESP8266) Serial WiFi Module is a compact and high-performance Wi-Fi SoC module based on the ESP8266 platform, designed to provide reliable 802.11 b/g/n wireless connectivity with an integrated 32-bit low-power CPU, on-chip Wi-Fi RF components, and rich peripheral support, making it suitable for IoT devices, wireless control, and embedded networking applications requiring low power consumption and flexible firmware development.

Features:

1. 802.11 b/g/n Wi-Fi SoC in an ultra-compact module
2. 32-bit low-power CPU with clock speed up to 160 MHz
3. Integrated Wi-Fi MAC, baseband, RF, PA, and LNA
4. Built-in 10-bit high precision ADC
5. Supports UART, GPIO, I2C, PWM, and ADC interfaces
6. Deep sleep current as low as 20 µA
7. Supports STA, AP, and STA + AP operating modes

Specifications:

• Product Type: Serial WiFi Module
• Chipset: ESP8266
• Wireless Standard: IEEE 802.11 b/g/n
• CPU Architecture: 32-bit
• Maximum Clock Speed: 160 MHz
• ADC Resolution: 10-bit
• UART Baud Rate: Up to 4 Mbps
• Mounting Type: SMD
• Package Type: SMD-16
• Operating Modes: STA / AP / STA + AP
• Power Consumption (Deep Sleep): 20 µA
• Applications: IoT devices, smart home systems, wireless sensors, remote monitoring, automation, embedded Wi-Fi solutions

Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 × Ai Thinker (ESP-07 ESP8266) Serial WiFi Module
