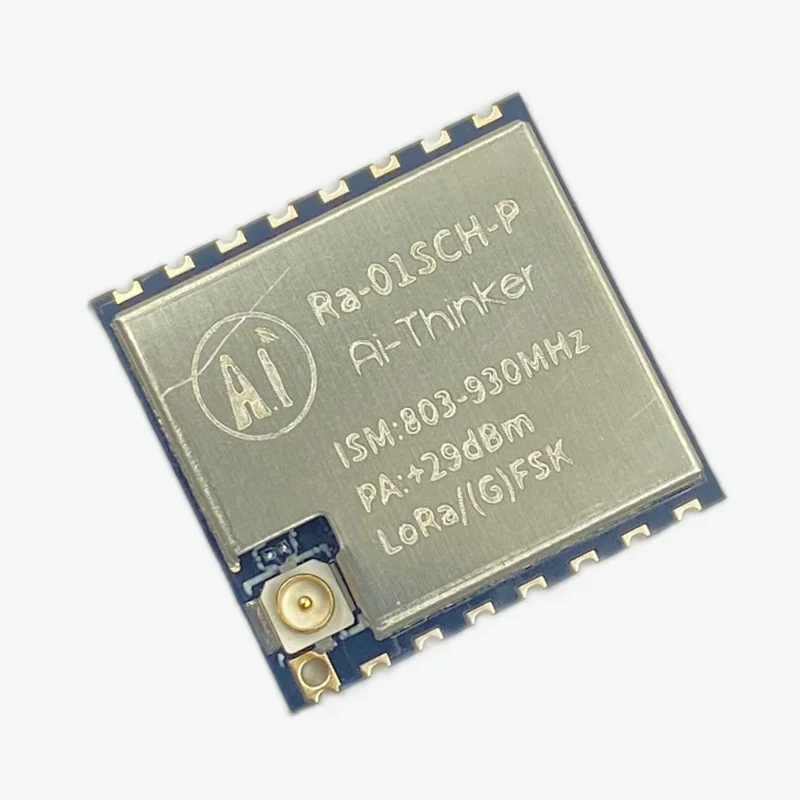

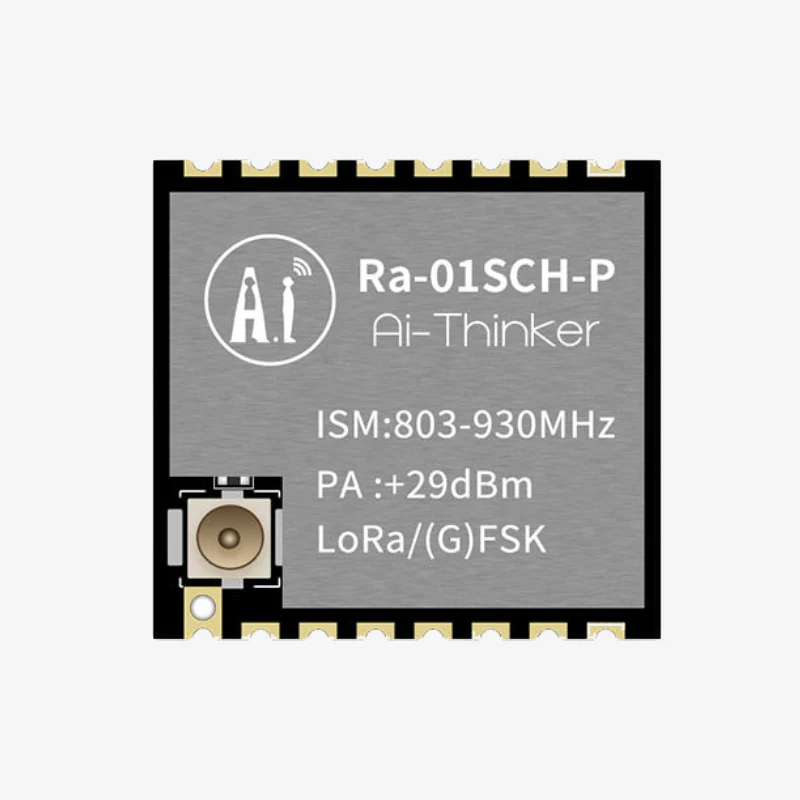

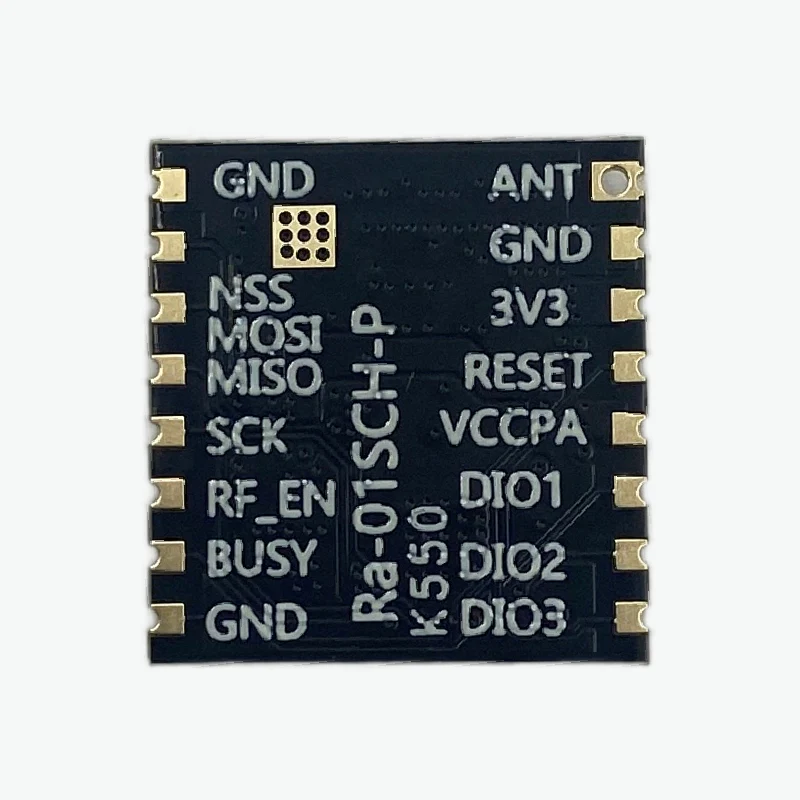

Ai Thinker LoRa Module (Ra-01SCH-P) Wireless Communication Module – 868MHz is a compact long-range wireless communication module based on the LLCC68 chipset, designed for low-power wide-area networking applications, offering ultra-long transmission distance up to 10km, SPI interface communication, flexible antenna options, and reliable performance across a wide frequency range, making it ideal for home automation, building control, and industrial IoT systems.

Features:

1. Based on LLCC68 LoRa chipset
2. Operates in 803MHz to 930MHz frequency range
3. 868MHz optimized long-range communication
4. Up to 10km ultra-long transmission distance
5. Supports SPI communication interface
6. Data rate up to 300 Kbps
7. Multiple antenna options including IPEX

Specifications:

1. Product Type: LoRa Wireless Communication Module
2. Model: Ra-01SCH-P
3. Chipset: LLCC68
4. Frequency Range: 803 MHz to 930 MHz
5. Interface: SPI
6. Package Type: SMD-16
7. Size: 17 × 16 × 3.2 mm
8. Power Supply Voltage: 3.0 V to 3.6 V
9. Typical Operating Voltage: 3.3 V
10. Operating Current: >1 A
11. Weight: 0.46 g
12. Applications: Home automation, building automation, security systems, industrial IoT, long-range wireless communication

Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 × Ai Thinker Ra-01SCH-P 868MHz LoRa Module for Wireless Communication
