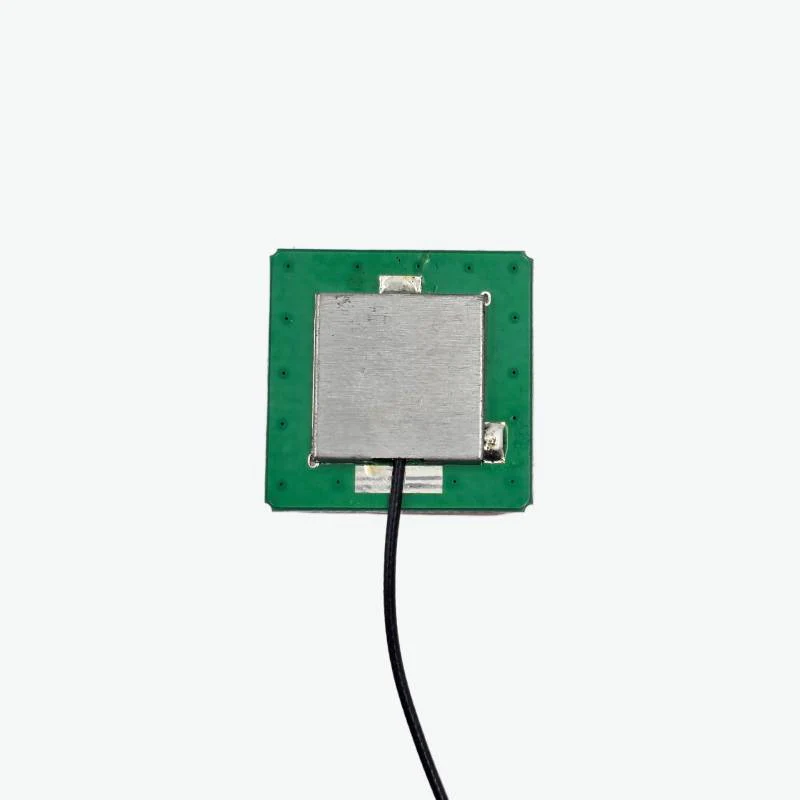

The GPS/BD GNSS 26dBi L120 IPX Q25×25 Internal Active Antenna delivers high-gain and precise positioning performance for advanced satellite navigation systems. Designed for stable reception and compact integration, this antenna is ideal for GPS, BeiDou, and GNSS applications requiring reliable signal tracking and consistent performance in space-constrained environments.

Features:

1. Supports GPS (1575.42 MHz) and BeiDou (1561.02 MHz) frequency bands

2. RHCP polarization ensures stable and accurate satellite signal acquisition

3. High-gain 26±2dB active performance at 2.7~3.3V operation

4. Compact internal structure for easy integration in space-limited devices

Specifications:

• Model: AHGG.202

• Frequency: GPS 1575.42 MHz / BD 1561.02 MHz

• Impedance: 50 Ω

• VSWR: ≤ 2.0

• Gain: 26 ± 2 dB @ 2.7~3.3V

• Polarization: RHCP

• Connector: IPX

• Cable: RG113, Length = 120 mm

• Material & Color: Ceramic / PCB

• Mounting Type: Internal

• Size: 25 × 25 × 6.5 mm

• Weight: 11 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × GPS/BD GNSS 26dBi L120 IPX Q25×25 Internal Active Antenna
