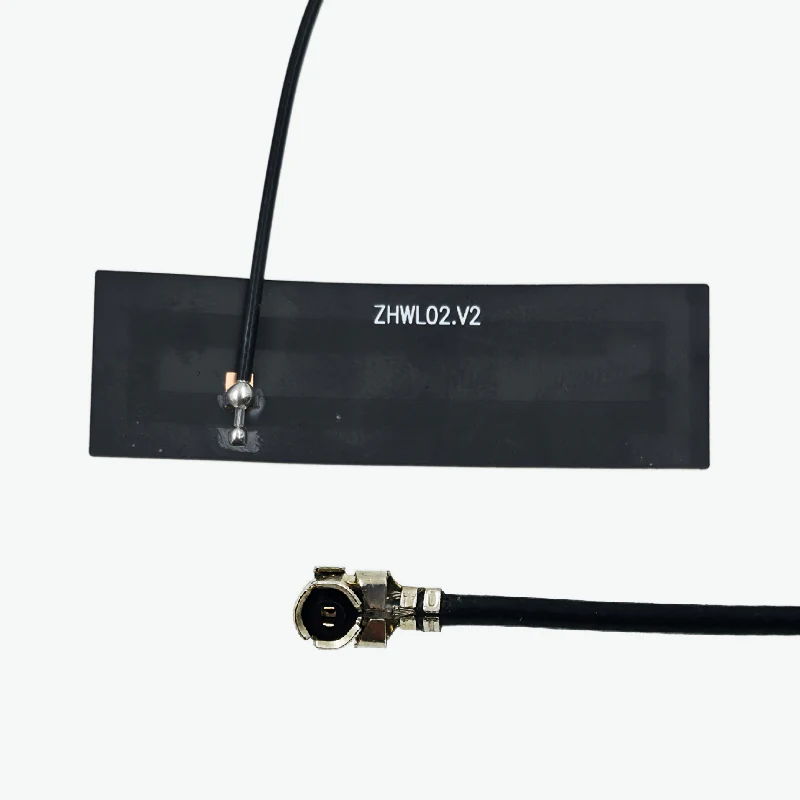

The FPC4814 GSM/3G/4G 2.5dBi L90 1.13 Cable IPX Antenna - ZHWL02.V2 delivers reliable wide-band performance for cellular and wireless communication systems. Designed for stable connectivity and compact installation, this antenna is ideal for IoT devices, smart modules, and embedded systems requiring consistent, omnidirectional signal coverage.

Features:

1. Supports GSM, WCDMA, LTE, NB-IoT, Cat.1, and LoRa 868/915 MHz applications

2. Omnidirectional vertical polarization for stable and uniform signal coverage

3. Flexible FPC design with adhesive mounting for easy installation

4. Low VSWR ensures efficient and reliable signal transmission

Specifications:

• Model: ZHWL02.V2

• Frequency: 824 ~ 2690 MHz

• Impedance: 50 Ω

• VSWR: ≤ 2.0

• Gain: 2.5 dBi

• Polarization: Vertical / Omni

• Connector & Cable: 1.13 mm black cable, L = 90 mm, IPX

• Material & Color: FPC, Copper

• Mounting Type: Adhesive

• Size: 14.0 × 48.0 × 0.1 mm

• Weight: 1.0 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × FPC4814 GSM/3G/4G 2.5dBi L90 1.13 Cable IPX Antenna - ZHWL02.V2
