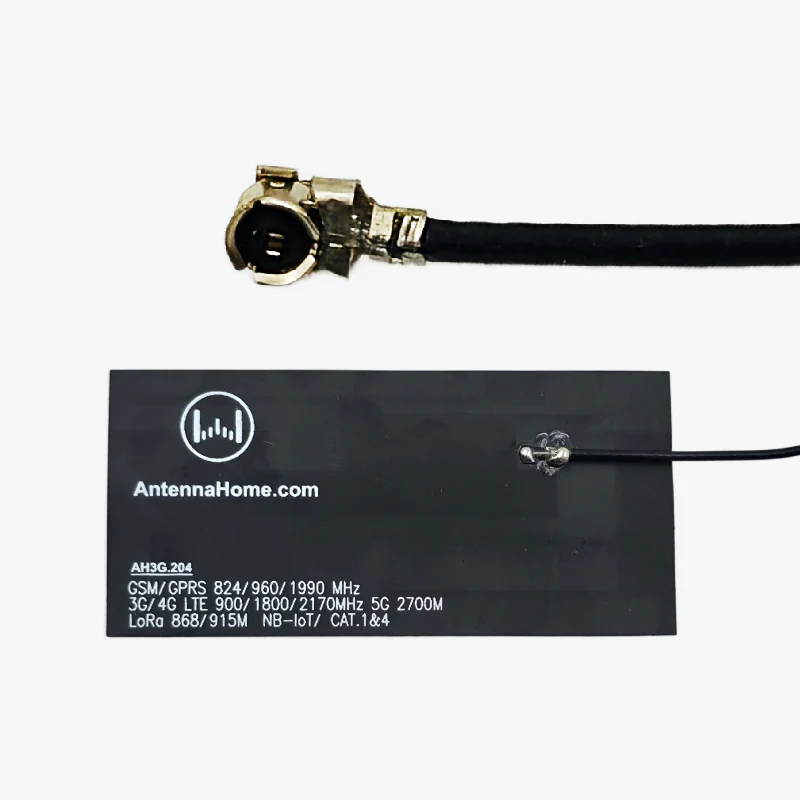

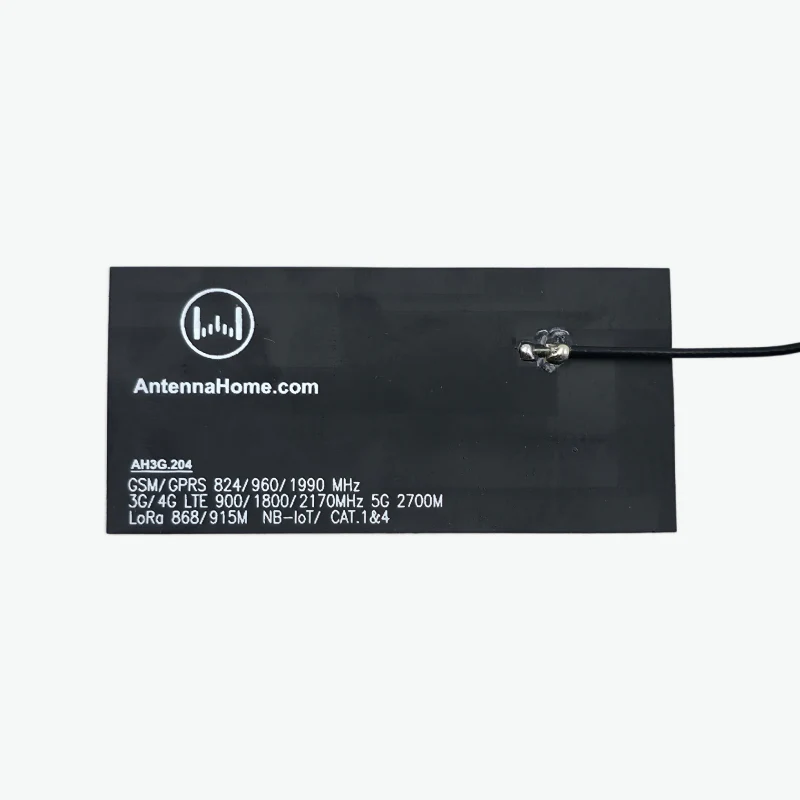

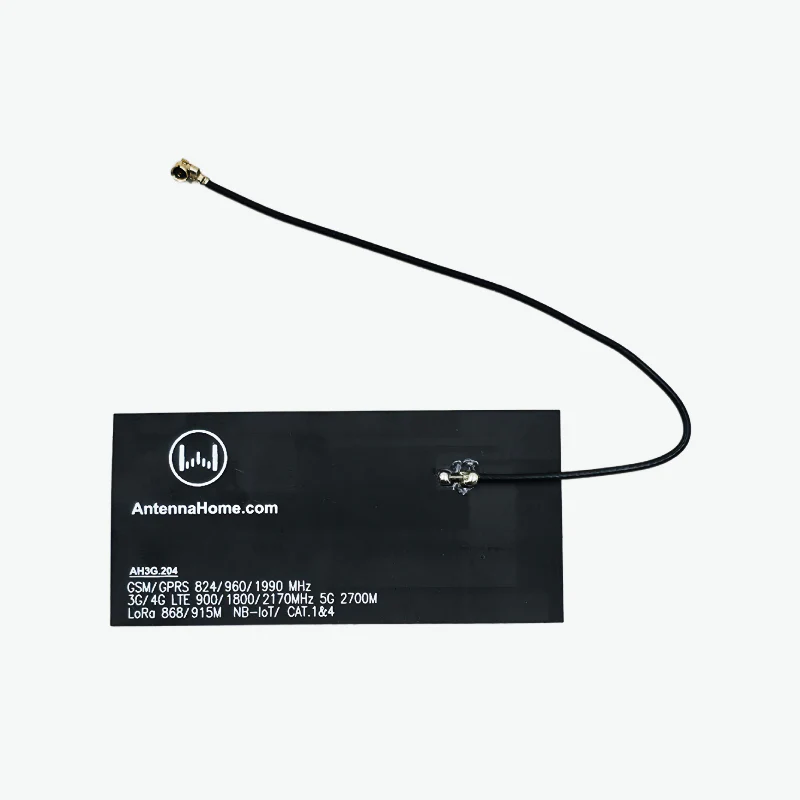

The FPC6330 GSM/GPRS 3G/4G/5G 1.5dBi L120 1.13 Cable IPX Antenna - AH3G.204 delivers reliable wide-band performance for cellular and wireless communication systems. Designed for stable connectivity and compact installation, this antenna is ideal for IoT devices, smart modules, and embedded systems requiring consistent, omnidirectional signal coverage.

Features:

1. Supports GSM, WCDMA, LTE, 5G, NB-IoT, Cat.1, and LoRa 868/915 MHz applications

2. Omnidirectional vertical polarization for consistent signal coverage

3. Flexible FPC structure for easy integration in compact enclosures

4. Low VSWR ensures efficient signal transmission

Specifications:

• Model: AH3G.204

• Frequency: 824 ~ 2700 MHz

• Impedance: 50 Ω

• VSWR: ≤ 2.5

• Gain: 1.5 dBi

• Polarization: Vertical / Omni

• Connector & Cable: FPC with 1.13 mm cable, L = 120 mm, IPX

• Material & Color: Copper

• Mounting Type: IPX connector

• Size: W30.0 × L63.0 mm

• Weight: 1.0 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × FPC6330 GSM/GPRS 3G/4G/5G 1.5dBi L120 1.13 Cable IPX Antenna - AH3G.204
