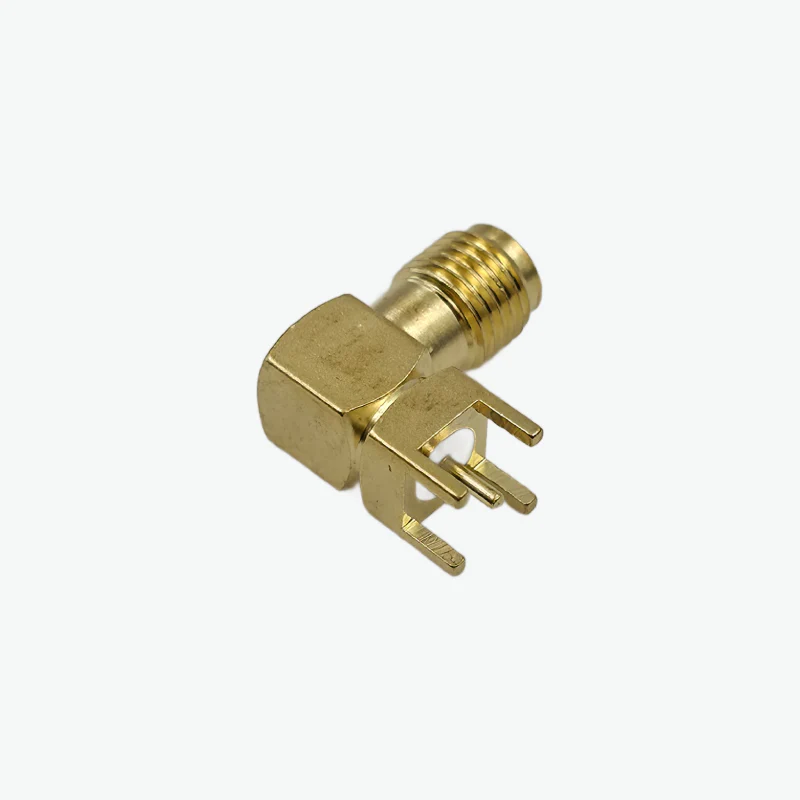

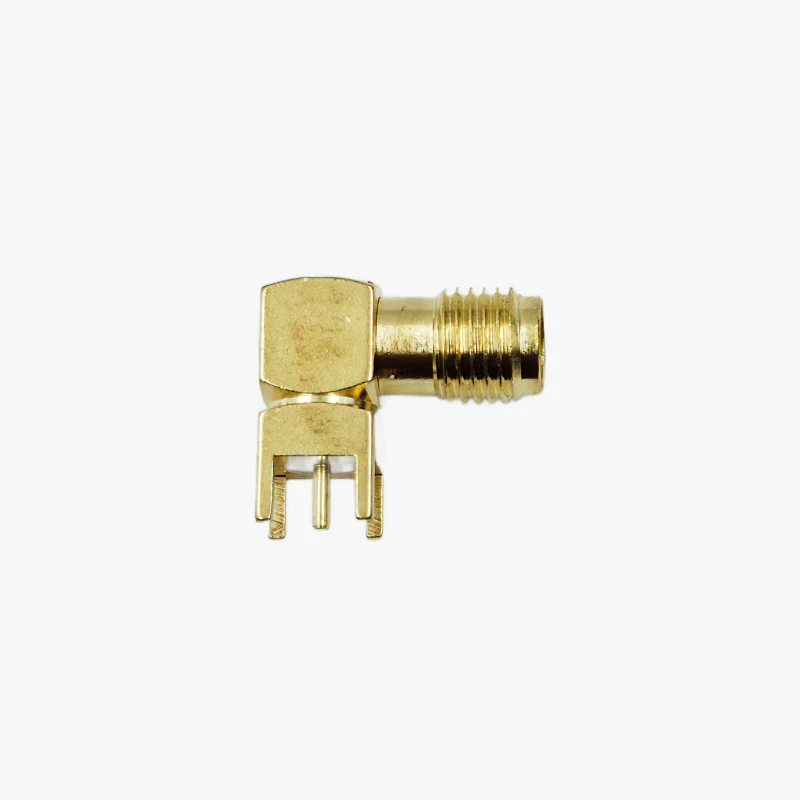

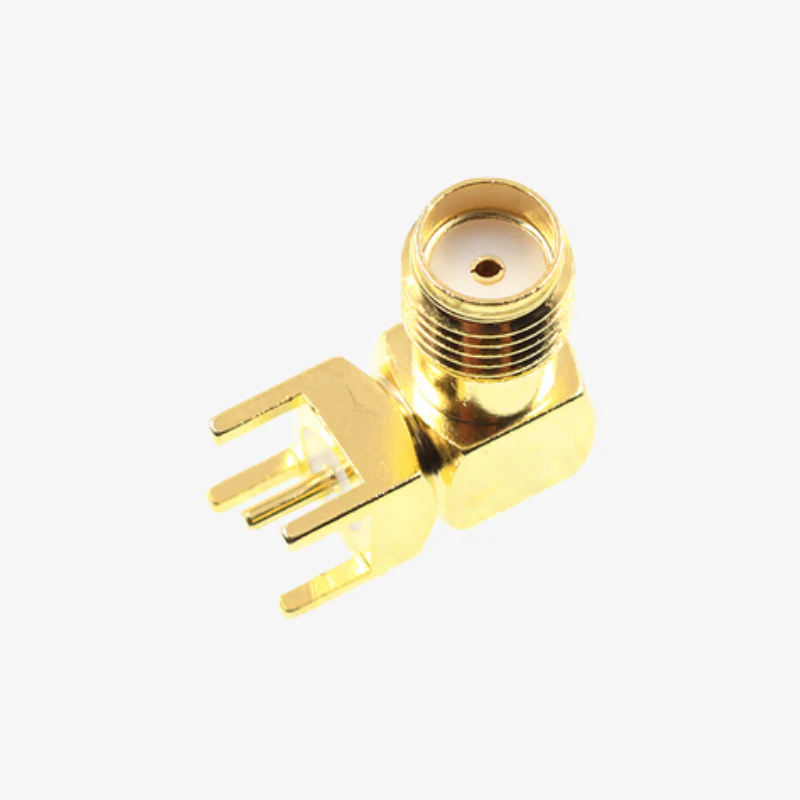

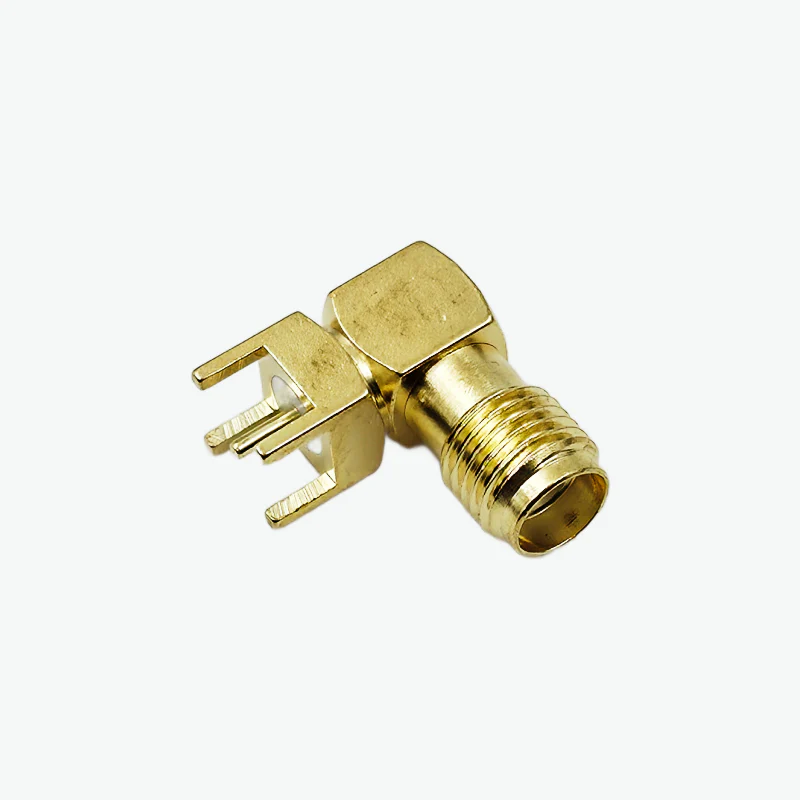

The RF 6GHz Female SMA-K Bended Q4 DIP Connector provides precise and low-loss performance for RF transmit and receiver systems. Designed for high-frequency communication modules and embedded boards, this connector ensures stable impedance, minimal signal loss, and reliable integration in compact RF applications.

Features:

1. Supports wide frequency range from DC to 6000 MHz

2. Low insertion loss of 0.25 dB for high signal integrity

3. Excellent impedance control with ≤1.3 VSWR

4. Durable copper construction with stable mechanical strength

5. DIP mounting design with bended structure for flexible board alignment

Specifications:

• Model: AHCG.202

• Frequency: DC ~ 6000 MHz

• Impedance: 50 Ω

• VSWR: ≤ 1.3

• Insertion Loss: 0.25 dB

• Connector Type: SMA-K (Bended)

• Material & Color: Copper

• Mounting Type: DIP

• Size: 6 × 14.5 mm

• Weight: 2.8 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × RF 6GHz Female SMA-K Bended Q4 DIP Connector for Antenna
