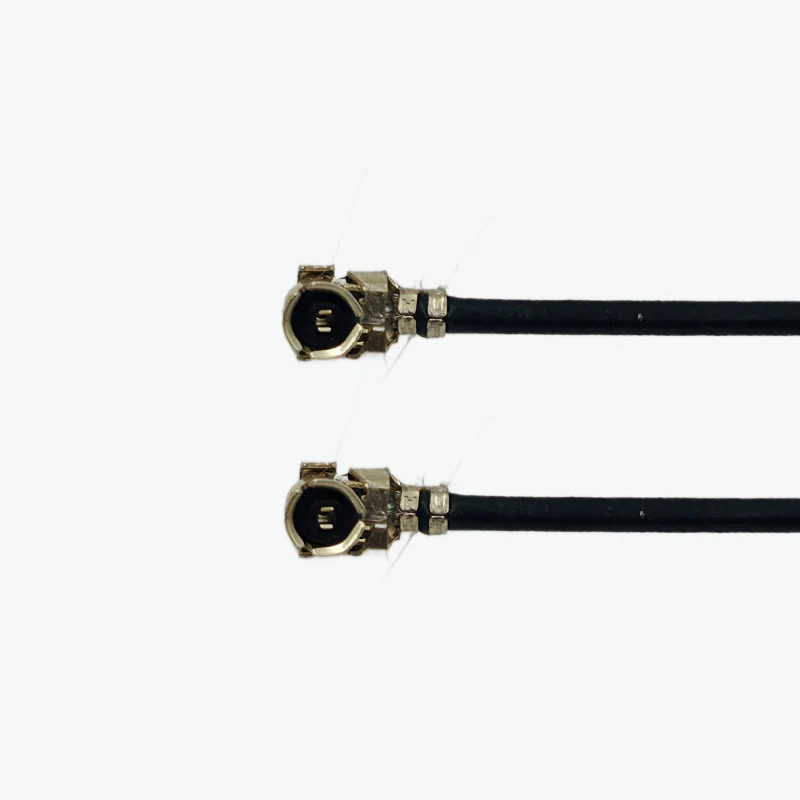

The RF 6GHz 1.13mm IPX to IPX Cable Assembly - 10 cm delivers ultra-low-loss and stable signal performance for compact RF communication systems. Designed for efficient connectivity and flexible integration, this assembly is ideal for RF transmitters, receivers, and embedded wireless modules operating up to 6GHz.

Features:

1. Supports broad frequency range from DC to 6000 MHz

2. Low insertion loss of 0.3 dB for superior signal transmission

3. Excellent impedance control with ≤1.3 VSWR for optimal stability

4. Lightweight 1.13 mm black coaxial cable with dual IPX connectors

Specifications:

• Model: AHCG.103

• Frequency: DC ~ 6000 MHz

• Impedance: 50 Ω

• VSWR: ≤ 1.3

• Insertion Loss: 0.3 dB

• Connector 1: IPX

• Connector 2: IPX

• Cable Type: 1.13 mm Coaxial

• Length: 100 mm

• Material & Color: Copper / Black cable

• Mounting Type: IPX G1 connector

• Weight: 1.0 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × RF 6GHz 1.13mm IPX to IPX Cable Assembly - 10 cm
