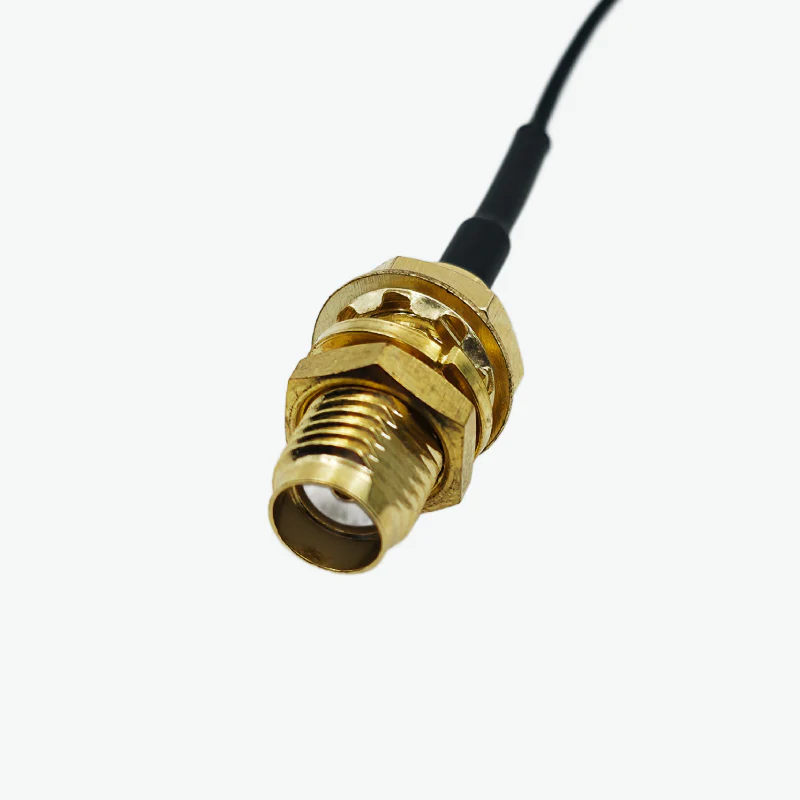

The RF 6GHz 1.13mm Female SMA to IPX Cable Assembly - 12 cm delivers low-loss and stable signal transmission for high-frequency RF communication systems. Designed for reliable connectivity and compact routing, this cable assembly is ideal for RF transmitters, receivers, and communication modules operating up to 6GHz.

Features:

1. Supports wide frequency range from DC to 6000 MHz

2. Low insertion loss of 0.5 dB ensures high signal integrity

3. Excellent impedance matching with ≤1.3 VSWR for stable performance

4. Durable 1.13 mm black coaxial cable with SMA-K and IPX connectors

Specifications:

• Model: AHCG.101

• Frequency: DC ~ 6000 MHz

• Impedance: 50 Ω

• VSWR: ≤ 1.3

• Insertion Loss: 0.5 dB

• Connector 1: SMA-K

• Connector 2: IPX

• Cable Type: 1.13 mm Coaxial

• Length: 120 mm

• Material & Color: Copper / Black cable

• Mounting Type: SMA connector

• Weight: 3.3 g

• Operating Temperature: −40 °C ~ +85 °C

Package Includes:

1 × RF 6GHz 1.13mm Female SMA to IPX Cable Assembly - 12 cm
